1.4. Generate a Simulator Setup Script Template

Simulator setup scripts help you to simulate IP cores in your design. Follow these steps to generate the vendor-specific simulator setup script template for the IP modules in the example design. You can then customize this template for your specific simulation goals.
  1. To compile the design, click Processing > Start Compilation. The Messages window indicates when compilation is complete.
  2. Click Tools > Generate Simulator Setup Script for IP.
  3. Use the default Output directory and keep the Use relative paths whenever possible option selected.
  4. Click OK to generate the setup script template and two sub-folders mentor/ and common/ in the specified output directory.

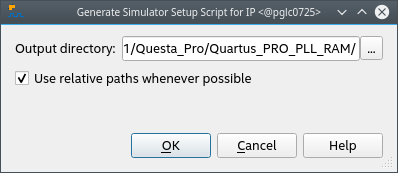

    Figure 3. Generate Simulator Setup Scripts IP Dialog Box
