2.3.1.1. About the EMR Unloader IP Core

The EMR Unloader IP core provides an interface to the EMR, which is updated continuously by the device’s EDCRC that checks the device's CRAM bits CRC for soft errors.

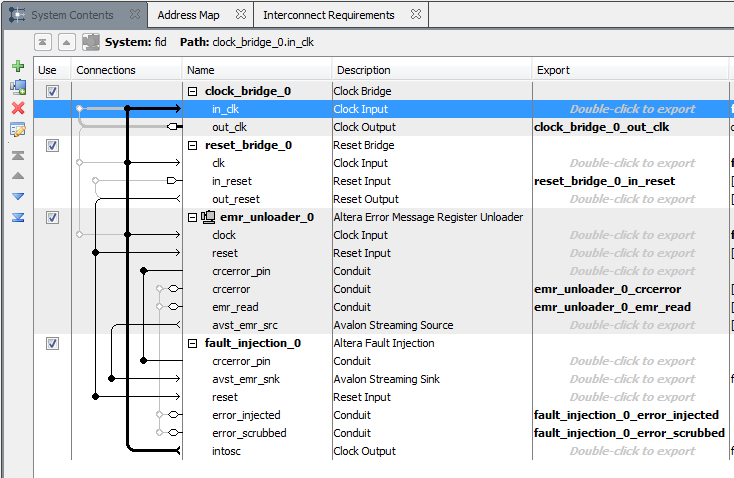

Figure 9. Example Platform Designer System Including the IP Core and EMR Unloader IP Core
Figure 10. Example IP Core and EMR Unloader IP Core Block Diagram
