4.2. 5G Polar IP Throughput and Latency

Throughput and latency can vary for different input frames, different input LLR values, different locations of frozen bits and parity check bits, and the number of frozen bits that determines code rate. The latency improves by about 5% when you turn off CRC and interleaving, but the throughput remains the same. The NUM_LIST = 8 decoder has approximately 10% longer latency and lower throughput compared to the NUM_LIST = 4 decoder.

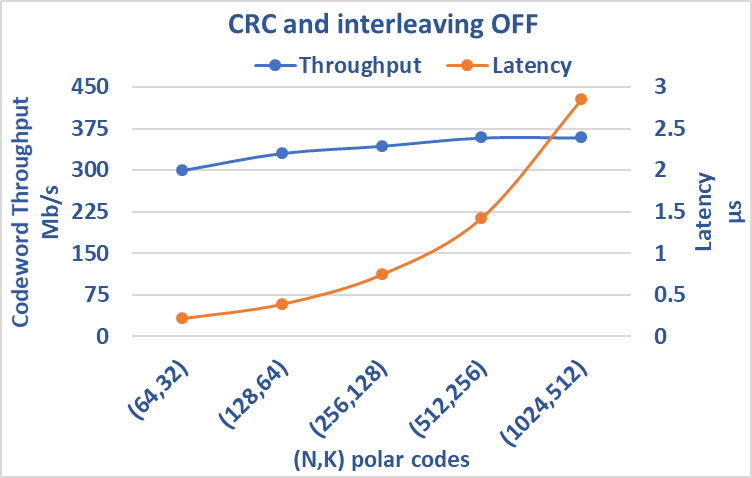

Figure 24. Encoder latency and throughputClock frequency = 370MHz. CRC and interleaving off.

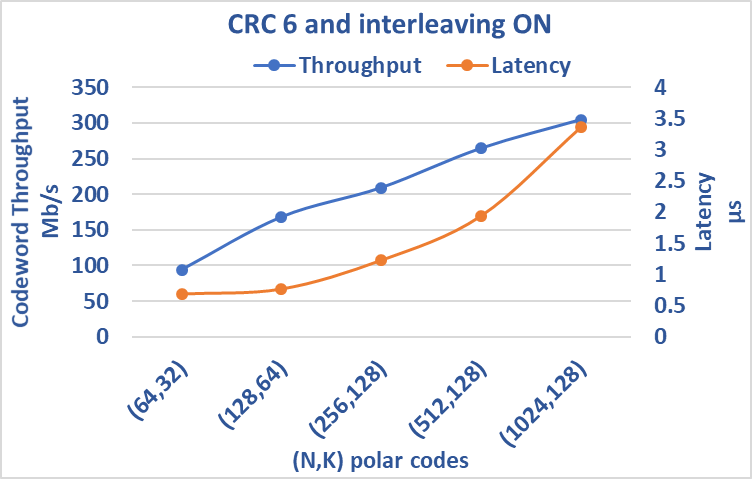

Figure 25. Encoder latency and throughputCRC = 6 and interleaving on

For the decoder figures, Rc is the code rate, which equals to number_of_information_bits (K) / code_block_length (N).

Figure 26. Decoder latencyClock frequency = 370MHz. NUM_LIST = 4

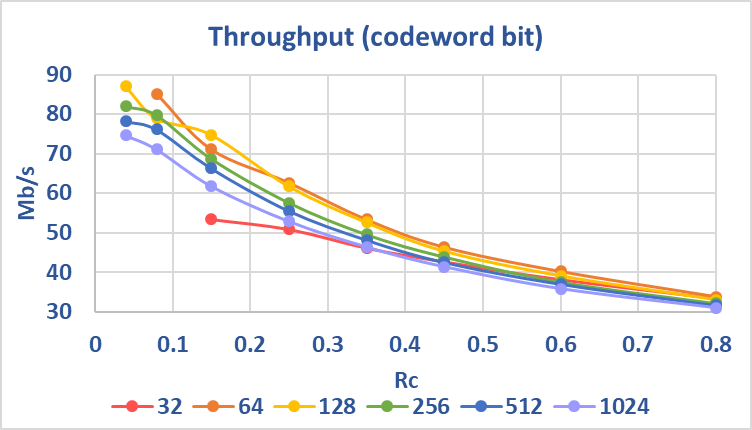

Figure 27. Decoder throughput (codeword bit)Clock frequency = 370MHz. NUM_LIST = 4

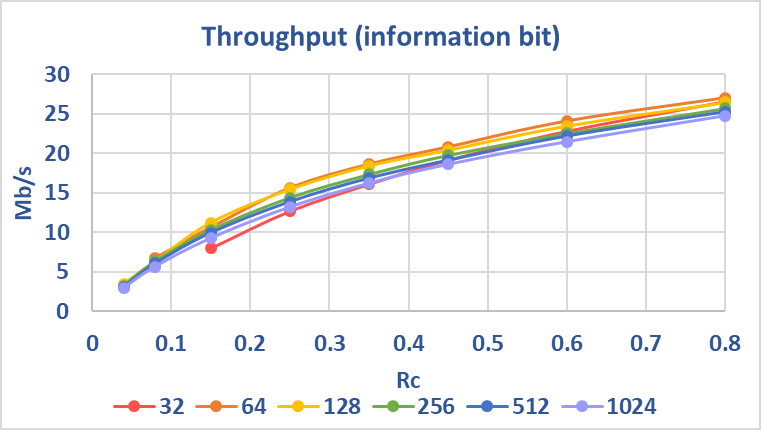

Figure 28. Decoder throughput (information bit)Clock frequency = 370MHz. NUM_LIST = 4
