7.1.5.3. Show Delays

With the Show Delays feature, you can view timing delays for paths appearing in Timing Analyzer reports. To access this feature, click View > Show Delays in the main menu. Alternatively click the Show Delays button in the Chip Planner toolbar. To see the partial delays on the selected path, click the “+” sign next to the path delay displayed in the Locate History window.
Figure 99. Show Delays Button on Chip Planner Toolbar


For example, you can view the delay between two logic resources or between a logic resource and a routing resource.

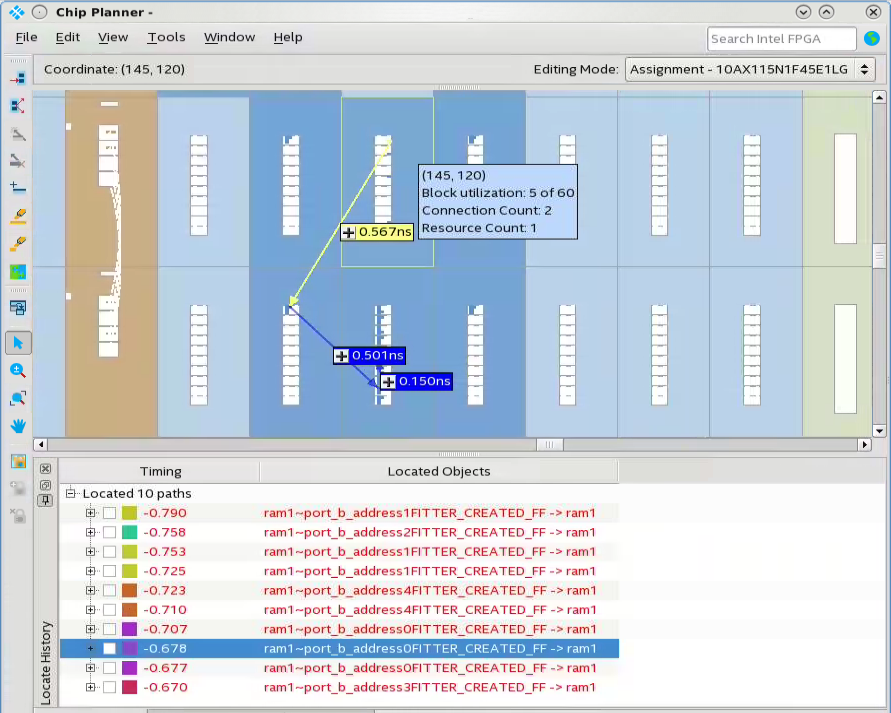

Figure 100. Show Delays Associated in a Timing Analyzer Path
