4.15. Intel® FPGA PTC - HBM Page ( Intel® Stratix® 10 Devices Only)

The HBM page of the Intel® FPGA Power and Thermal Calculator ( Intel® FPGA PTC) shows the power information pertaining to high-bandwidth memory (HBM). This page is available for Intel® Stratix® 10 devices only.

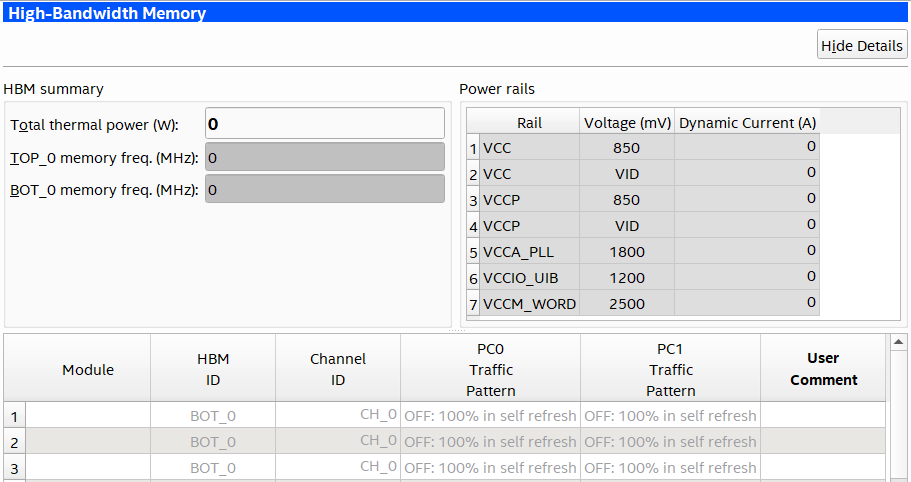

Figure 24. HBM Page of the Intel® FPGA PTC
Table 21.  HBM Channel Configuration
Column Heading Description
Module A user-editable field to name each module of the design.
HBM ID Select the top or bottom HBM stack in devices that include multiple stacks.
Channel ID Selects a particular die in the stack.
PC0 Traffic Pattern Select the traffic pattern that most closely matches your application. (PC0 and PC1 refer to the two pseudo-channels that each physical channel [0-7] is divided into; you can select different traffic patterns for each pseudo-channel.)
PC1 Traffic Pattern Select the traffic pattern that most closely matches your application. (PC0 and PC1 refer to the two pseudo-channels that each physical channel [0-7] is divided into; you can select different traffic patterns for each pseudo-channel.)
User Comment User Comment field.
