2.3. PCB Design Flow

The following figure shows the Signal Integrity work flow in a platform design. Some adjustments may be necessary if PCB simulations fail or do not reach the desired targets.

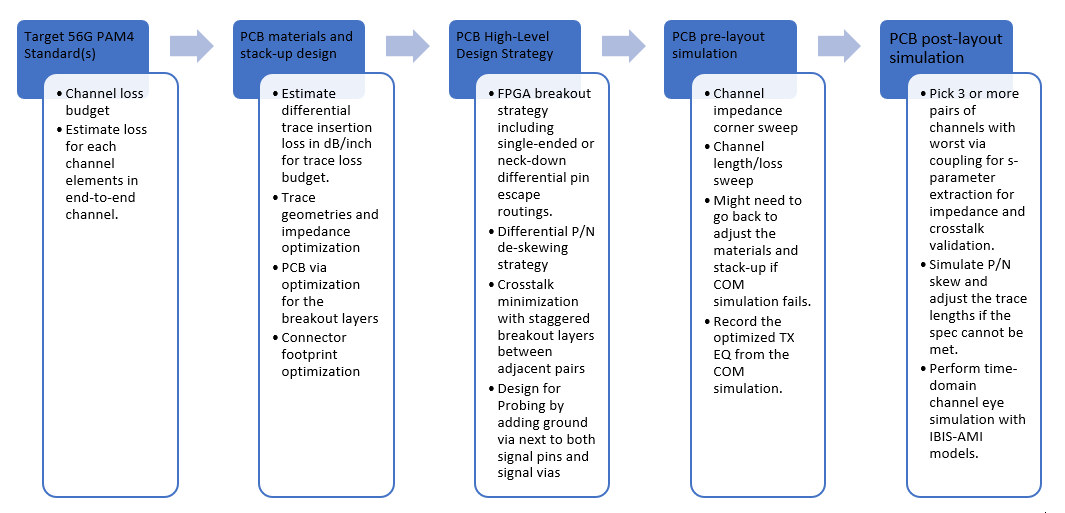

Figure 5. Signal Integrity Work Flow in Platform Design
