2.3.1.8. Expand Connections

Expand connections, which was previously supported in the Netlist Viewer, is also supported in the RTL Analyzer and useful when performing filtering. Expand Connections allow you to expand a selected pin and reveal the next connected node.
Note: Before using the Expand Connections feature, disable the Auto-hide Unconnected Pins in the Display settings.

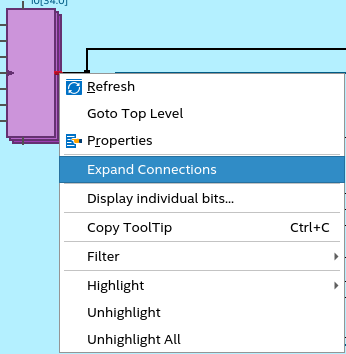

To use this feature, select a pin, right-click and select Expand Connections in the context-sensitive menu, as shown in the following image:

Figure 33. Expand Connections

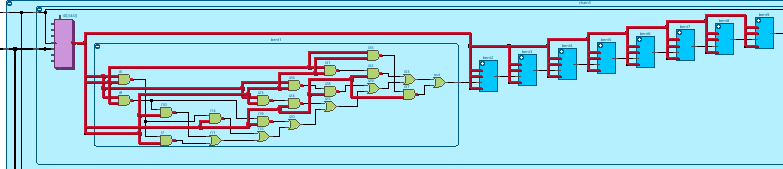

The logical path from the selected pin to the next connected node is highlighted, as shown in the following image:
