4.2.3. Install the Acceleration Stack for Development

  1. Download, extract, and change permission for the DEV installer:
    $ tar xvzf n3000_ias_1_1_pv_dev_installer.tar.gz

    $ cd n3000_ias_1_1_pv_dev_installer
    $ chmod +x  n3000-1.3.6-dev-setup.sh
  2. Run the script:
    $ sudo ./n3000-1.3.6-dev-setup.sh -y --owner <user[:group]>
    The --owner argument allows you to change the ownership of directories to a given user. Running interactively without the -y option is not supported. For example:
    $ sudo ./n3000-1.3.6-dev-setup.sh -y --owner john:john
    The installation will take approximately 20 minutes to complete.
    Sample output:
    Running setup
Beginning installation
Processing group "OPAE Software"
Analyzing dependencies...
Analyzing packages to install...
error running: ['yum', 'info', 'opae-intel-fpga-driver.x86_64']
error running: ['yum', 'info', 'opae.admin.noarch']
error running: ['yum', 'info', 'opae-libs.x86_64']
error running: ['yum', 'info', 'opae-tools.x86_64']
error running: ['yum', 'info', 'opae-tools-extra.x86_64']
error running: ['yum', 'info', 'opae-devel.x86_64']
        Installing OPAE Software packages...
                opae-intel-fpga-driver-2.0.1-6.x86_64.rpm
                opae.admin-1.0.2-3.noarch.rpm
                opae-libs-1.3.6-4.x86_64.rpm
                opae-tools-1.3.6-4.x86_64.rpm
                opae-tools-extra-1.3.6-4.x86_64.rpm
                opae-devel-1.3.6-4.x86_64.rpm
Processing group "OPAE PACSign"
Analyzing dependencies...
Analyzing packages to install...
error running: ['yum', 'info', 'opae.pac_sign.x86_64']
        Installing OPAE PACSign packages...
                opae.pac_sign-1.0.2-3.x86_64.rpm
Extracting opae-1.3.6-4.tar.gz
Extracting pac_n3000_rtl_1.3.6.tar.gz
Installing main Quartus package: QuartusProSetup-19.2.0.57-linux.run
                Installing update: quartus-19.2-0.01vc-linux.run
Source /home/<user>/inteldevstack/bin/init_env.sh to setup your environment.
Changing ownership on /home/<user>/inteldevstack
Installation done

    The message error running: [ 'yum' , …] in the above output is expected and can be ignored.

  3. Add the Intel® Quartus® Prime development tool to the path. This is required for AFU compilation:
    $ source /home/<username>/inteldevstack/bin/init_env.sh
    Adding /home/<username>/inteldevstack/intelFPGA_pro/quartus/bin to PATH
Adding /home/<username>/inteldevstack/intelFPGA_pro/nios2eds/bin/gnu/H-x86_64-pc-linux-gnu/bin to PATH
Adding /home/<username>/inteldevstack/bin to PATH
  4. Verify Intel® Quartus® Prime installation by bringing up Intel® Quartus® Prime GUI and verifying the version and IP licenses:
    $ quartus
    1. Click Help > About Quartus Prime to verify Intel® Quartus® Prime version:

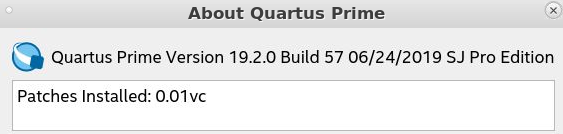

      Figure 9.  Intel® Quartus® Prime Version
      If patch .01vc is not installed, then verify that init_env.sh ran successfully.
    2. Click Tools > License Setup to verify IP licenses.

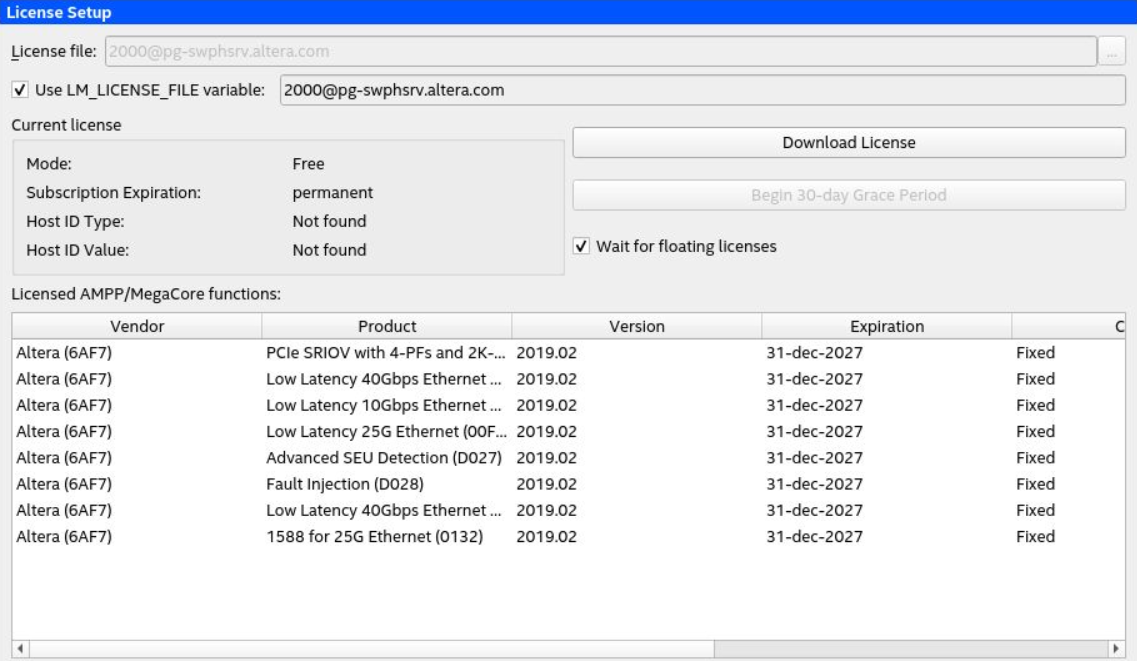

      Figure 10. IP Licenses
