2.3.1. Example: DQ Pin Swizzling Within DQS Group for x32+ECC DDR4 Interface

This example uses the lane placement of the following table, with a x8 DQ width.
Table 4.  Lane Placement for a x32+ECC DDR4 Interface
Lane Number BL0 BL1 BL2 BL3 BL4 BL5 BL6 BL7
Default placement DQ[0] AC0 AC1 AC2 DQ[1] DQ[2] DQ[3] GPIO
Table 5.  Example of Swizzling DQ pin in BL0 ( DQS group 0)
Lane Pin Index DDR4 x32 (Default Placement) After Swizzling / Swapping
BL0 11 MEM_DQ[7] MEM_DQ[6]
10 MEM_DQ[6] MEM_DQ[5]
9 MEM_DQ[5] MEM_DQ[7]
8 MEM_DQ[4] MEM_DQ[4]
7
6 MEM_DM_N[0] MEM_DM_N[0]
5 MEM_DQS_C[0] MEM_DQS_C[0]
4 MEM_DQS_T[0] MEM_DQS_T[0]
3 MEM_DQ[3] MEM_DQ[0]
2 MEM_DQ[2] MEM_DQ[2]
1 MEM_DQ[1] MEM_DQ[1]
0 MEM_DQ[0] MEM_DQ[3]

To achieve this swizzling in DQS group 0, you must enter PIN_SWIZZLE_CH0_DQS0=3,1,2,0,4,7,5,6; in the Pin Swizzle Map under the PHY section in the External Memory Interfaces IP parameter editor.

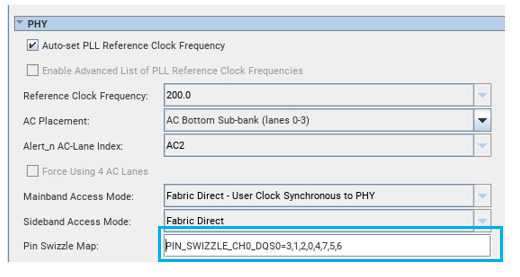

Figure 7. Entering a PIN_SWIZZLE Specification
Table 6.  Example of Swizzling DQ pin in BL5 ( DQS group 2)
Lane Pin Index DDR4 x32 (from table) After Swizzling / Swapping
BL5 71 MEM_DQ[23] MEM_DQ[17]
70 MEM_DQ[22] MEM_DQ[22]
69 MEM_DQ[21] MEM_DQ[21]
68 MEM_DQ[20] MEM_DQ[20]
67
66 MEM_DM_N[2] MEM_DM_N[2]
65 MEM_DQS_C[2] MEM_DQS_C[2]
64 MEM_DQS_T[2] MEM_DQS_T[2]
63 MEM_DQ[19] MEM_DQ[19]
62 MEM_DQ[18] MEM_DQ[18]
61 MEM_DQ[17] MEM_DQ[23]
60 MEM_DQ[16] MEM_DQ[16]

To achieve this swizzling in DQS Group 2, you must enter PIN_SWIZZLE_CH0_DQS2=16,23,18,19,20,21,22,17; in the Pin Swizzle Map under the PHY section in the External Memory Interfaces IP parameter editor.

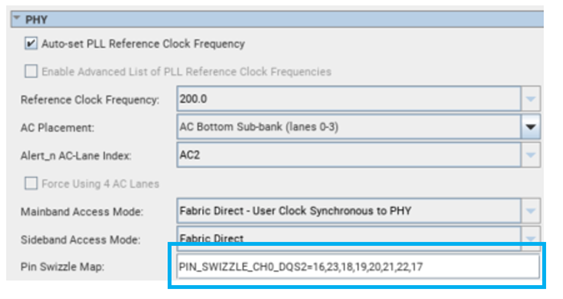

Figure 8. Entering a PIN_SWIZZLE Specification

You can enter multiple specifications in the User Extra Parameters field, each separated by a semicolon.

Figure 9. Entering Multiple PIN_SWIZZLE Specifications
