2.1.1. Generating a Custom Memory Presets File

This topic illustrates how to generate and configure memory device presets.

These steps create a DDR5 presets file; however, the steps are similar for other memory protocols.

  1. In the IP Catalog window, select Memory Device Description IP (DDR5). (If the IP Catalog window is not visible, select View > IP Catalog.)
    Figure 4. IP Catalog

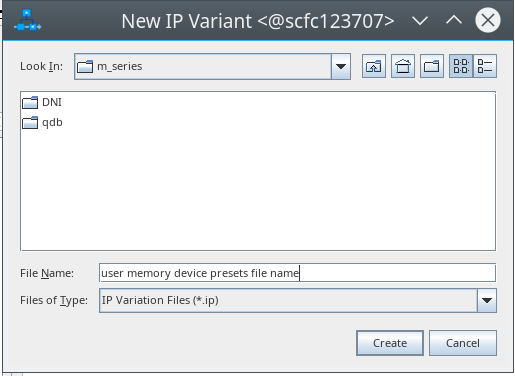

  2. In the IP parameter editor, provide an entity name for the memory device presets file (the name that you provide here becomes the file name for the file) and specify a directory. Click Create.
    Figure 5. Specifying a File Name

Section Content
Memory Device Description IP Parameter Editor Guidelines
Saving a Memory Device Presets File
Examples for Generating a Custom Memory Presets File
