2.1.1.3.3. Generating a Custom Memory Preset File for DDR5
To generate a custom preset file for DDR5, follow these steps:

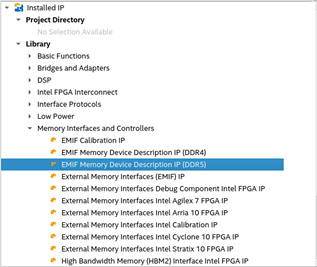

- In the IP Catalog window, select Memory Device Description IP (DDR5).

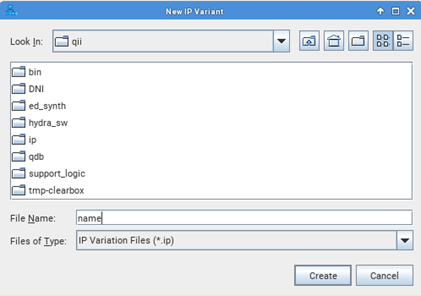

- Type the name for the IP instance and click Create.
- Refer to the images below for the steps in creating and saving the custom presets file:

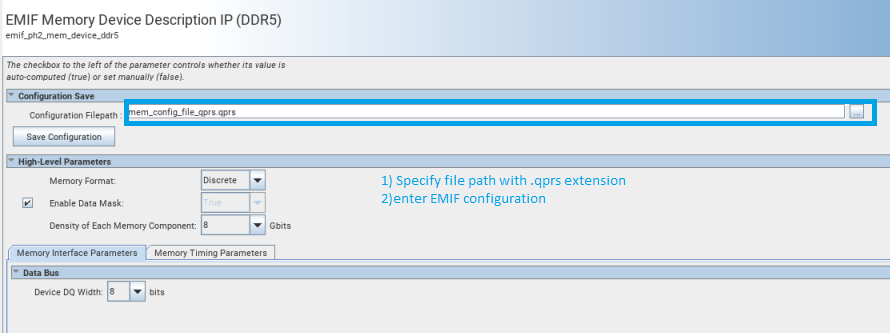

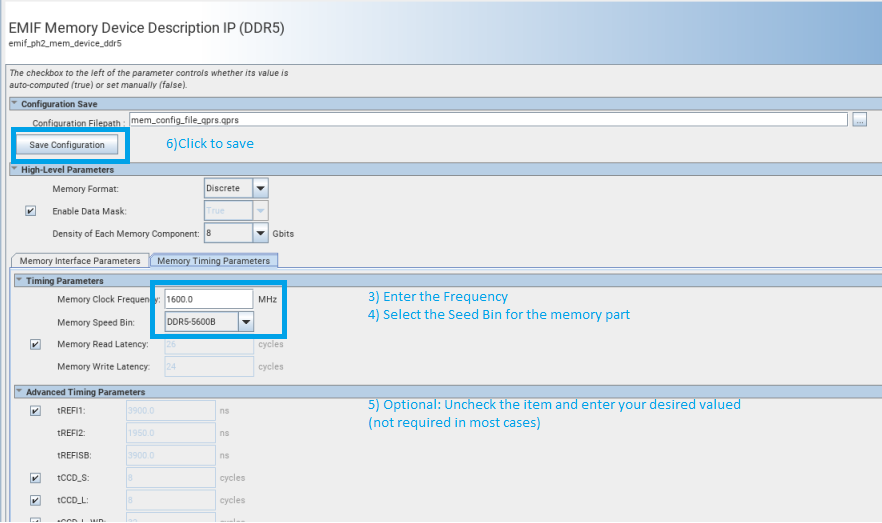

Figure 13. Parameterizing EMIF Memory Device Description IP (DDR5) – Part 1Figure 14. Parameterizing EMIF Memory Device Description IP (DDR5) – Part 2
