1.2.4. Ethernet to CPRI Design Example Parameters

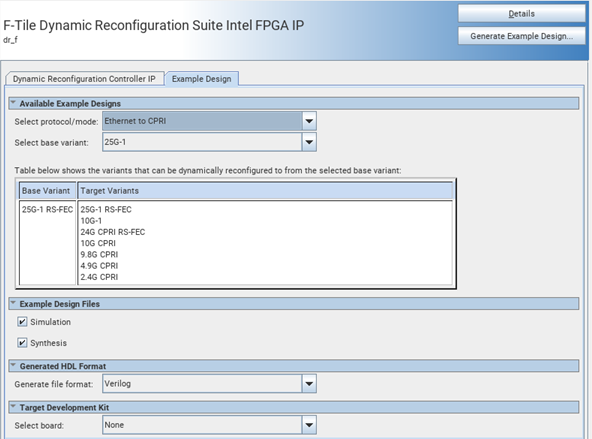

Figure 6. Ethernet to CPRI Example Design Tab
Table 5.  Ethernet to CPRI Design Example Parameters
Parameters Value Description
Select Protocol/mode

Ethernet to CPRI

 Select the IP protocol for dynamic reconfiguration.
Select Base Variant

25G-1

25G-1 (with 1GE) 		Select the configuration of base variant for dynamic reconfiguration.
Example Design Files Simulation

Synthesis

 Simulation option generates the testbench and compilation-only project. Synthesis option generates the hardware design example.
Generated File Format Verilog

VHDL

 Select the HDL files format. If you select VHDL, you must simulate the testbench with a mixed-language simulator.
Target Development Kit None

Agilex 7 I-Series Transceiver-SoC Development Kit

 Target development kit option specifies the target device used to generate the project.
