4.7. Running the Endpoint Design Example Application

For link stability when running the design example on the Intel® Stratix® 10 DX FPGA Development Kit or the Intel® Agilex™ F-Series FPGA Development Kit, set the PCIe refclk switch to select the common refclk from the PCIe Edge Connector.
  • For the Intel® Stratix® 10 DX FPGA Development Kit, set SW14 to the OFF position to select the common refclk with the PCIe Host.
  • For the Intel® Agilex™ F-Series FPGA Development Kit, set SW7.1 to the OFF position to select the common refclk with the PCIe Host.

Here are the test operations you can perform on the P-Tile Avalon® Memory-mapped design example:

Table 9.  Test Operations Supported by the P-Tile Avalon® Memory-mapped PCIe Design Example
Operations Required BAR Supported by P-Tile Avalon® -MM PCIe Design Example
0: Link test - 100 writes and reads 2 Yes
1: Write memory space 2 Yes
2: Read memory space 2 Yes
3: Write configuration space N/A Yes
4: Read configuration space N/A Yes
5: Change BAR N/A Yes
6: Change device N/A Yes
7: Enable SR-IOV N/A No
8: Do a link test for every enabled virtual function belonging to the current device N/A No
9: Perform DMA 0 Yes
10: Quit program N/A Yes
To run a DMA test:
  1. Navigate to ./software/user/example under the design example directory.
  2. Compile the design example application:

    $ make

  3. Run the test:

    $ sudo ./intel_fpga_pcie_link_test

    You can run the Intel FPGA IP PCIe link test in manual or automatic mode.
    • In automatic mode, the application automatically selects the device. The test selects the Intel® Stratix® 10 DX or Intel® Agilex™ PCIe device with the lowest BDF by matching the Vendor ID. The test also selects the lowest available BAR.
    • In manual mode, the test queries you for the bus, device, and function number and BAR.

    For the Intel® Stratix® 10 DX or Intel® Agilex™ Development Kit, you can determine the BDF by typing the following command:

    $ lspci -d 1172

  4. For example, enter 0 to select Automatically select a device.
  5. Enter 9 to perform the DMA test.

  6. Enter 0 to run DMA. Then enter 0 again to run an infinite DMA loop test.

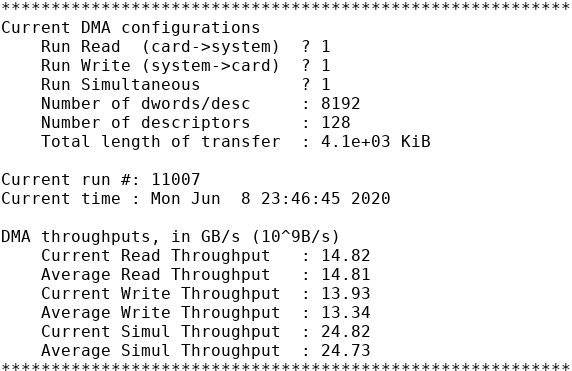

  7. The DMA test can be stopped by hitting the ESC key. Here is a sample transcript of the results:

    Note: The throughput numbers above are for a Gen3 x16 design example.
  8. Enter 6 to return to the main menu.
  9. Enter 5 to change the BAR. Then enter 2 to select BAR2.
  10. Enter 0 to start the Link test - 100 writes and reads.
  11. The results below show zero write and read error as well as zero Dword mismatch.

  12. Enter 5 to change the BAR. Then enter 4 to select BAR4.
  13. Enter 4 to Read the configuration space.
  14. Enter 0x0 to read out the Vendor ID.
