3.5.2.4.5.3. Testing Bitstream Configuration beyond 256 Channels (for DPDK Poll Mode Driver)

Note: In case, if the *.sof file generated with the number of channels > 256, please follow this procedure.
  1. Define following macros in dpdk/drivers/net/mcdma/rte_pmd_mcdma.h
    #define IFC_MCDMA_DIDF
  2. Configure the mem zone in dpdk-stable/config/rte_config.h
    #define RTE_MAX_MEMZONE 20480
In case of AVMM, BDF is provided as an argument and you must define examples/mcdma-test/perfq/meson.build
-DIFC_MCDMA_SINGLE_FUNC

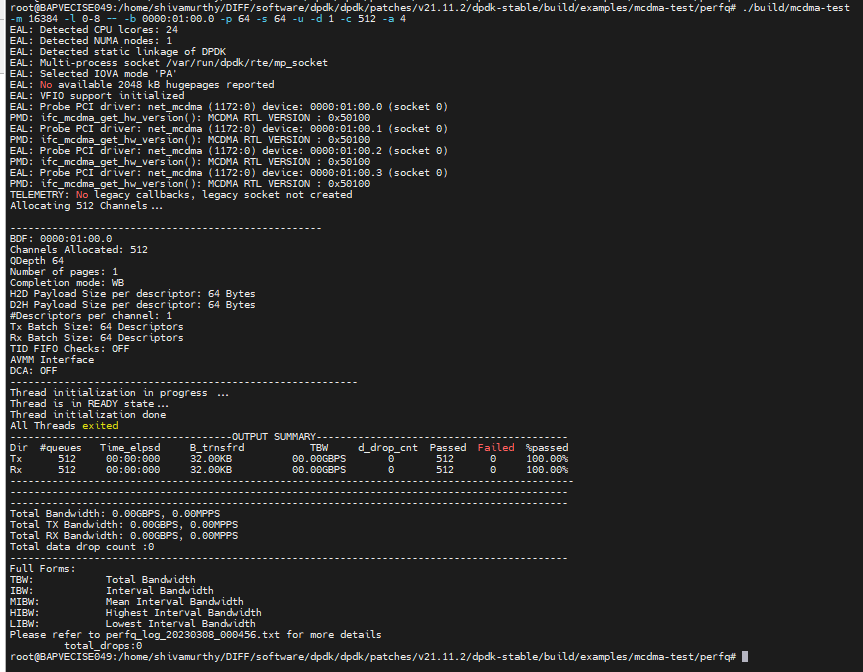

Figure 39. Example Command Output For AVMM
Configuration for AVST/AXIST LB and AVST/AXIST pktgen Undefined single function mode in examples/mcdma-test/perfq/meson.build
-UIFC_MCDMA_SINGLE_FUNC
Note: bdf is not provided to run the test

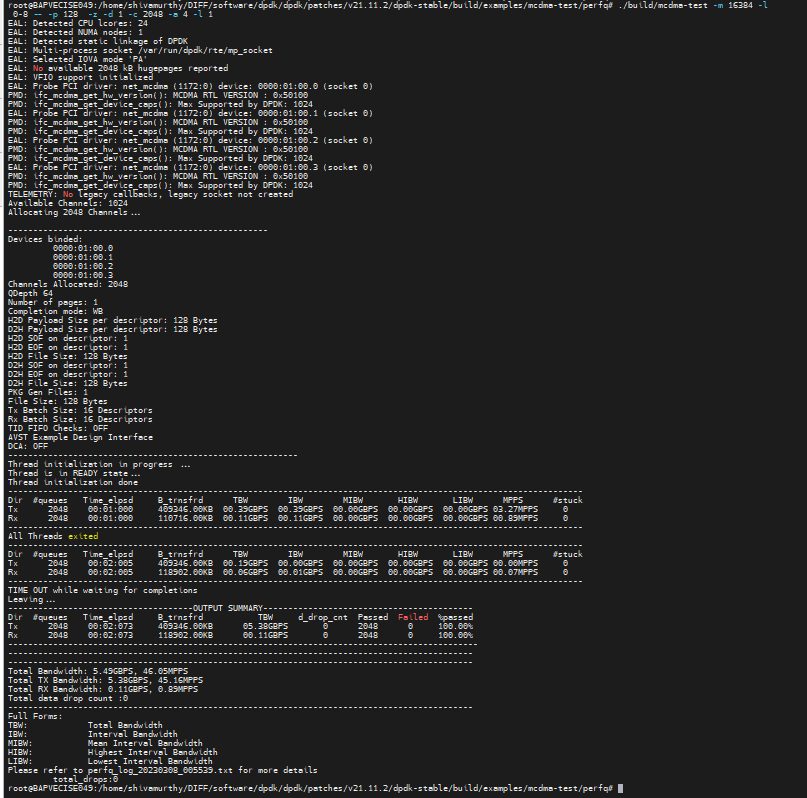

Figure 40. Example Command Output for AVST/AXIST
Command for pktgen: :
./build/mcdma-test –m 16384 –l 0-8 - -b -p 64 -l 1 -z -d 1 -c 2048 -a 4
Command for loopback:
./build/mcdma-test –m 16384 –l 0-8 - -b -p 64 -l 2 -i -d 1 -c 2048 -a
Note: In the current release, single page is supported in DIDF mode.
Note: In the current release, simultaneous process is not supported in DIDF mode. You can run one process with 2K channels.
