3.5.2.4.5. Run the Reference Example Application

  1. After the reference application is built, run it:

    $ ./build/mcdma-test -- -h

  2. This command will display the available options in the application as shown in the image below:
  3. Do a PIO test to check if the setup is correct. If successful, the application will show a Pass status.

    [root@BAPVENC011T perfq]# ./build/mcdma-test -- -b 0000:01:00.0 -o

    Here -b should be provided with the correct BDF in the system.

  4. The DPDK driver can be used with the AVST/AXIST Packet Generate/Check design example to test the packet generator and checker design.

    The following diagram shows the testing strategy.

    Configuration in examples/mcdma-test/perfq/perfq_app.h

    In the case of static channel mapping, modify the following parameters:
    • /* PF count starts from 1 */
#define IFC_QDMA_CUR_PF <pf number>
• /* VF count starts from 1. Zero implies PF was used instead of VF */
#define IFC_QDMA_CUR_VF <vf number>
• /* Number of PFs */
#define IFC_QDMA_PFS <number of PFs>
/* Channels available per PF */
#define IFC_QDMA_PER_PF_CHNLS <number of channels per PF>
• /* Channels available per VF */
#define IFC_QDMA_PER_VF_CHNLS <number of channels per VF>
• /* Number of VFs per PF */
#define IFC_QDMA_PER_PF_VFS <number of VFs per PF>

    perfq_app command line parameters:

    Command:

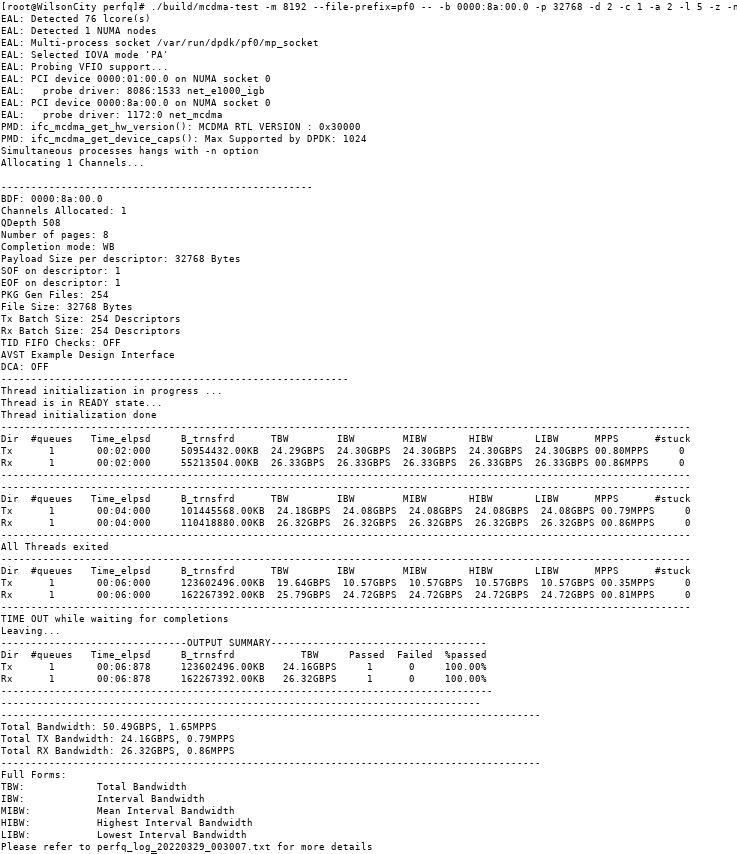

    $ ./build/mcdma-test -m 8192 --file-prefix=pf0 --\
 -b 0000:01:00.0 -p 32768 -d 2 -c 1 -a 2 -l 5 -z -n
    Configuration:
    1. 1 channel (-c 1)
    2. Packet generator bidirectional (-z)
    3. Payload length of 32,768 bytes in each descriptor (-p 32768)
    4. Transfer the data every 5 seconds (-l 5)
    5. Dump the progress log every second (-d 2)
    6. Configure the number of channels in ED (-n)
    7. Number of threads to be used for DMA purpose. (-a 2)
    Note: This hardware test was run with the Stratix® 10 GX H-tile PCIe Gen3 x16 configuration.
    Figure 37. DPDK Avalon-ST Packet Generate/Check Design Example Gen4 x16 : P-Tile Hardware Test Results
  5. The DPDK driver can also be used with the AVST/AXIST Device-side Packet Loopback design example to test loopback.

    The following diagram shows the testing strategy.

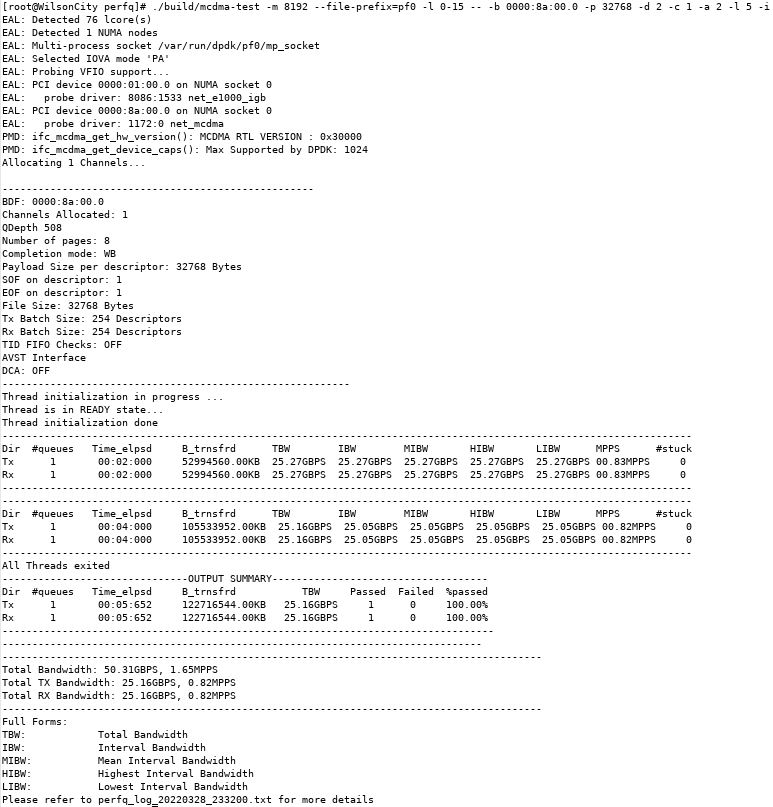

    Command: $ ./build/mcdma-test -m 8192 --file-prefix=pf0 -l 0-15 -- -b 0000:01:00.0 -p 32768 -d 2 -c 1 -a 2 -l 5 -i

    Configuration:
    1. 1 channel (-c 1)
    2. Packet generator bidirectional (-i)
    3. Payload length of 64 bytes in each descriptor (-p 32768)
    4. Transfer the data every 5 seconds (-l 5)
    5. Dump the progress log every second (-d 2)
    Note: This hardware test was run with the Stratix® 10 GX H-tile PCIe Gen3 x16 configuration.
    Figure 38. DPDK Avalon-ST Device-side Packet Loopback Design Example Gen4 x16 : P-Tile Hardware Test Result

Section Content
Channel ID VF PF Verification
Example of Verifying on an AVMM Design
Testing Bitstream Configuration beyond 256 Channels (for DPDK Poll Mode Driver)
BAM Test
BAS Test
