3.5.1. Program the FPGA

Note: This section describes how to program the FPGA using the Stratix® 10 Development Board. If you are using one of the boards listed in the previous section, the name of the development board you select to use shall apply for this section accordingly.
  1. Connect a FPGA programming cable to the Stratix® 10 FPGA Development Board
  2. On the Tools menu, select Programmer
  3. In the Programmer, click Hardware Setup and verify the Stratix® 10 FPGA Development Board is detected in Hardware Setting tab and JTAG Settings tab
  4. Select Auto Detect to detect the JTAG device chain
  5. Select the target FPGA device in the JTAG chain, select Change File, and select the pcie_ed.sof
  6. Select Start to start programming

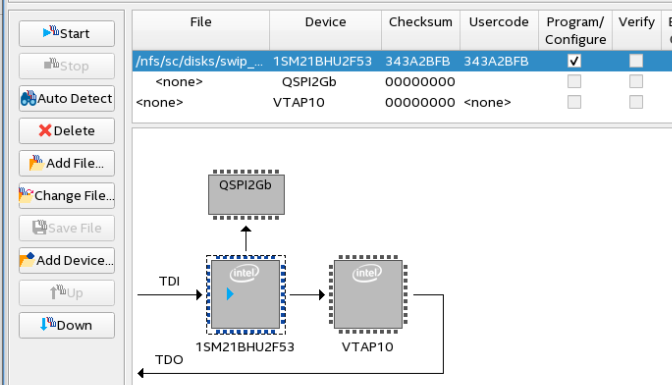

    Figure 30. Programming Stratix 10 MX FPGA Development Board
