1. Intel® MAX® 10 FPGA 10M50 Evaluation Kit Overview
2. Getting Started
3. Board Components
A. Additional Information

1.1. Board Component Blocks

The Intel® MAX® 10 FPGA 10M50 Evaluation Kit features the following major component blocks. For a detailed description of the board components, refer to the "Board Components" section.
  • Featured Devices
    • Intel® MAX® 10 FPGA - 10M50D, dual supply, F484 package (P/N: 10M50DAF484C6GES)
    • MAX® II CPLD - EPM1270M256C4N (on-board Intel® FPGA Download Cable II)
    • EK-10M50F484 (Power Solution 1)
      • Intel® Enpirion® EP5348UI—400 mA PowerSoC synchronous buck regulator with integrated inductor
      • Intel® Enpirion® EP5358xUI—600 mA PowerSoC DC-DC step-down converters with integrated inductor
      • Intel® Enpirion® EN5329QI/EN5339QI—2 A/3 A PowerSoC low profile synchronous buck DC-DC converter with integrated inductor
    • DK-DEV-10M50F484-C (Power Solution 2)
      • MPS MPM3632SGPQ-C879-Z —3 A synchronous buck DC-DC converter with integrated inductor
      • MPS MPM3804GG-C879-Z —600 mA synchronous buck regulator with integrated inductor
  • FPGA configuration
    • Embedded Intel® FPGA Download Cable II (JTAG)
    • Optional JTAG direct via 10-pin header
  • On-board clocking circuitry
    • 25 MHz single-ended, external oscillator clock source
    • Silicon Labs Si510 crystal oscillator
    • Silicon Labs Si5338 clock generator with programmable frequency GUI
  • Memory devices
    • 64M x 16 1 Gbits LPDDR2 with soft memory controller
    • 512 Mbits Quad Serial Peripheral Interface (Quad SPI) Flash
  • Communication Ports
    • One HDMI video output
    • Two 12-pin Pmod connectors
    • Two 36-pin MIPI FFC connectors and one 16-pin MIPI FFC connector
  • General User I/O
    • General-purpose single-ended through-hole vias (2x5)
    • General-purpose LVDS through-hole vias (2 x 9 LVDS pairs, plus two clock pairs)
    • 5 Green User-defined LEDs
    • 4 User-defined push buttons
    • User DIP Switches (SW1, SW2.1, SW2.2)
  • Power
    • Yellow Power-ON LEDs (D9, D10, D11)
    • USB Y cable (USB Type-A to mini Type-B) for both on-board Intel® FPGA Download Cable II and 5V/1A power capability
    • Support DC power adapter option, but 5V power supply and cord are not included in the kit
  • Software
  • Complete documentation
    • User Guide, bill of material, schematic and board files

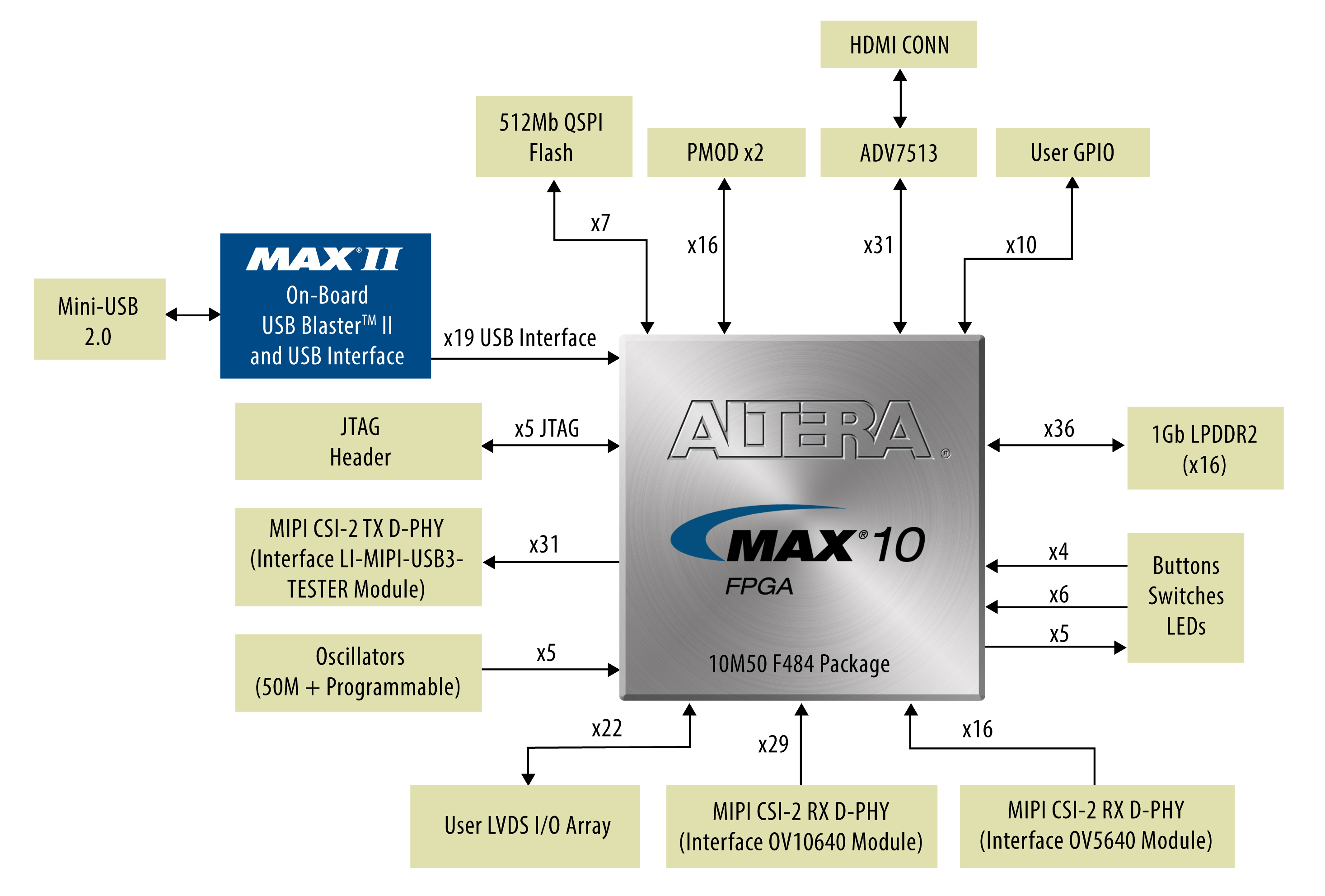

Figure 1.  Intel® MAX® 10 10M50 FPGA Evaluation Kit Block Diagram
