14.6.6.4. Implementing a One Shot Counter with the Finite State Machine

If a control unit in a design needs to send a control pulse at some fixed number of cycles after the first valid sample (or coming out of reset), implement a one-shot counter.

Procedure

  1. Implement the following Finite State Machine block definition:
    # one shot counter
require version 23.3
netlist
transitions OneShot : q
    state S0
        default S1 0
    state S1
        default S2 0
    state S2
        default S3 0
    state S3
        default S4 0
    state S4
        default S5 0
    state S5
        default S6 0
    state S6
        default S7 0
    state S7
        default S8 0
    state S8
        default S9 0
    state S9
        default S10 0
    state S10
        default Stop 0
    state Stop
        default Halted 1
    state Halted
        default Halted 0
end
    This code allows you to send control signals after a small number of cycles but it is verbose and is difficult to parameterize in setup scripts.

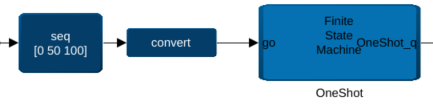

  2. Alternatively, implement the Finite State Machine block with DSP Builder primitive blocks such as the Sequence block.
    # One-shot finite state machine to be used
# with an external counter or sequence block
require version 23.3
netlist
transitions OneShot : q
    state Start
        default Next 0
    state Next
        default Stop 1
    state Stop
        default Stop 0
end
    The control pulse sends after 50 clock cycles. Even though the Sequence block repeats every 100 cycles, the one-shot Finite State Machine produces the control signal only once.
  3. Implement the following code so the Finite State Machine blocks incorporate ForLoop blocks internally to achieve the same effect:
    Figure 148. One-shot Counter
    # A one shot counter using a for-loop for the initial delay
require version 23.3
netlist
for x 0 < 50
end
transitions OneShot : q
    state Start
        default Next 0
    state Next
        default Stop 1
    state Stop
        default Start 0
end
Level Two Title
