12.1.6. Decimating FIR

The DecimatingFIR block implements a highly efficient multichannel FIR filter across a broad range of parameters directly from a Simulink model. A memory-mapped interface allows you to read and write coefficients directly, easing system integration. The Decimating FIR block performs filtering on a stream of multichannel input data and produces a stream of output data with increased sampling frequency.

Use the Decimating FIR block in a digital down converter for a radio system or a general purpose DSP application. The coefficients and input data are fixed-point types, and the output is the implied full precision fixed-point type. You can reduce the precision by using a separate Scale block, which can perform rounding and saturation to provide the required output precision.

The Decimating FIR block supports rate changes from two upwards, coefficient width in bits from 2 to 32 bits, half-band and L-band Nyquist filters, real and complex filters, symmetry and anti(negative)-symmetry.

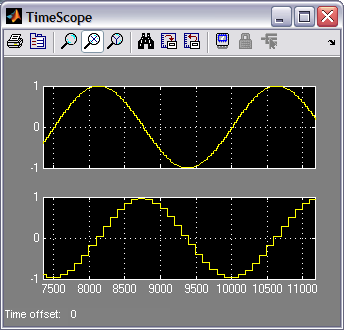

Figure 106. Decimating by 5 Filter Decreasing Sample Rate of a Sine Wave Input

At each sample time k, the new output y, is calculated by multiplying coefficients a, by the recent past values of the input x.

The Decimating FIR has a lower output sample rate than the input sample rate by a factor, D, the decimation factor. The decimating FIR discards D–1 out of D output samples, thus lowering the sample rate by a factor D.

The physical implementation avoids performing multiplications with these zero samples, reducing the filter cost.

Table 44.  Parameters for the DecimatingFIR Block
Parameter Description
Input rate per channel Specifies the sampling frequency of the input data per channel measured in millions of samples per second (MSPS).
Decimation Specifies the decimation rate. Must be an integer.
Number of channels Specifies the number of unique channels to process.
Symmetry You can select Symmetrical or Anti-Symmetrical coefficients. Symmetrical coefficients can result in hardware resource savings over the asymmetrical version.
Coefficients You can specify the filter coefficients using a Simulink fixed-point object fi(0). The data type of the fixed-point object determines the width and format of the coefficients. The length of the array determines the length of the filter.

For example, fi(fir1(49, 0.3),1,18,19)

Base address You can memory map the filter's coefficients into the address space of the system. This field determines the starting address for the coefficients. It is specified as a MATLAB double type (decimal integer) but you can use a MATLAB expression to specify a hexadecimal or octal type if required.
Read/Write mode You can allow Read, Write, or Read/Write access from the system interface. Turn on Constant. to map coefficients to the system address space.
Filter structure You can select Use All Taps, Half Band, or other specified band (from 3rd Band to 46th Band).
Expose Avalonmemory-mapped agent in Simulink Allows you to reconfigure coefficients without Platform Designer. Also, it allows you to reprogram multiple FIR filters simultaneously. Turn on to show the Avalon-MM inputs and outputs as normal ports in Simulink. The Read/Write mode decides the valid subset of Avalon memory-mapped agent ports that appear on the block. If you select Constant, the block shows no Avalon-MM ports.
Reconfigurable channels Turn on for a reconfigurable FIR filter.
Channel mapping Enter parameters as a MATLAB 2D aray for reconfigurable FIR filter. Each row represents a mode; each entry in a row represents the channel input on that time slot. For example, [0,0,0,0;0,1 2,3] gives the first element of the second row as 0, which means DSP Builder processes channel 0 on the first cycle when the FIR is set to mode 1.
Soft reset rezeroes delay lines
When this parameter is On, after a soft reset:
  • The FIR filter initial valid output behaves as if DSP Builder resets to zero all contributions from internal delay lines.
  • The FIR filter behavior is the same as when you first program the FPGA.

This parameter defaults to Off, which is the traditional FIR filter behavior.

When this parameter is Off, the initial valid output following a soft reset may contain residue from inputs before the reset. This residue incrementally flushes out as the FIR filter output evolves to become entirely a function of new valid inputs.

When this parameter is On the FIR filter may require additional resources.

For more information about Simulink fixed-point objects and MATLAB functions, refer to the MATLAB Help.

Table 45.  Port Interface for the DecimatingFIR Block
Signal Direction Description
a Input The fixed-point data input to the block. If you request more channels than can fit on a single bus, this signal is a vector. The width in bits is inherited from the input wire.
v Input Indicates validity of the data input signals. If v is high, the data on the a wire is valid.
c Input Indicates the channel of the data input signals. If v is high, then c indicates which channel the data corresponds to.
m Input Indicates a reconfigurable filter.
b Input Indicates multibank filter. This input appears when you add a second filter definition to the Coefficients parameter in the parameters dialog box.
q Output The fixed-point filtered data output from the block. If you request more channels than can fit on a single bus, this signal is a vector. The width in bits is a function of the input width in bits and the parameterization.
v Output Indicates validity of data output signals.
c Output Indicates the channel of the data output signals. The output data can be non-zero when v is low.
Related Information
Level Two Title
