19.2. TMO IP Parameters

The IP offers compile-time and run-time parameters
Table 278.  Compile-time Parameters
Name Values Description
Video Configuration

Number of pixels in parallel

1, 2, 4

Number of pixels/samples in parallel

Number of color planes

3

Number of color planes (4:4:4 RGB video)

Bits per color sample

8, 10, 12

Number of bits per pixels/samples

For more information on the run-time parameters refer to TMO IP Registers.

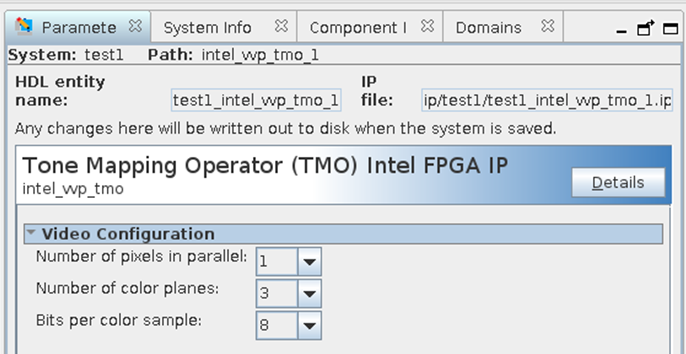

Figure 40. TMO IP GUI
