2.1.2.1. Specify Instance-Specific Constraints in Assignment Editor

Intel® Quartus® Prime Assignment Editor (Assignments > Assignment Editor) provides a spreadsheet-like interface for assigning all instance-specific settings and constraints. To help you explore your design, the Assignment Editor allows you to filter assignments by node name or category.

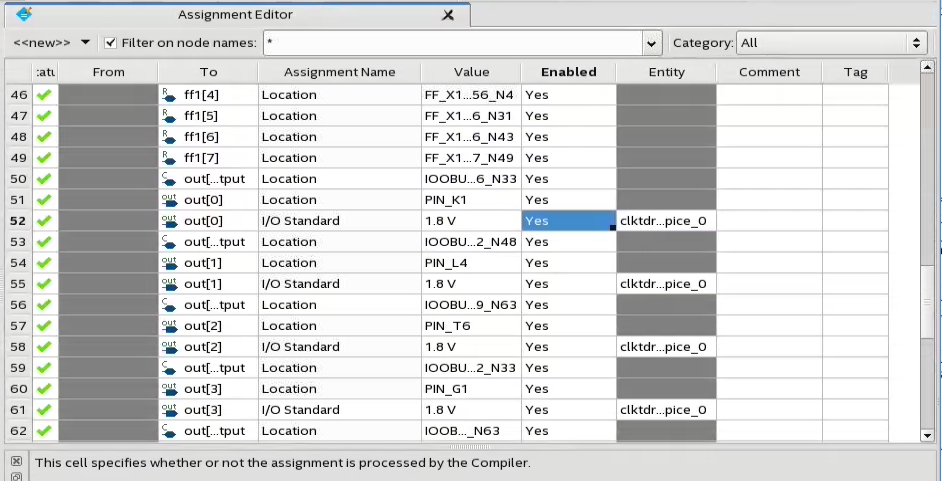

Figure 1.  Intel® Quartus® Prime Assignment Editor


Use the Assignment Editor to:
  • Add, edit, or delete assignments for selected nodes
  • Display information about specific assignments
  • Enable or disable individual assignments
  • Add comments to an assignment
Additionally, you can export assignments to a Comma-Separated Value File (.csv).
