4.6.3. Constraining Regions for Fault Injection

After loading a .smh file, specify the ASD regions for the Fault Injection Debugger to inject faults.
Before you begin, program the .smh file into memory.
  1. Right-click the FPGA in the Device chain box, and select Show Device Sensitivity Map.
    The device sensitivity map displays.

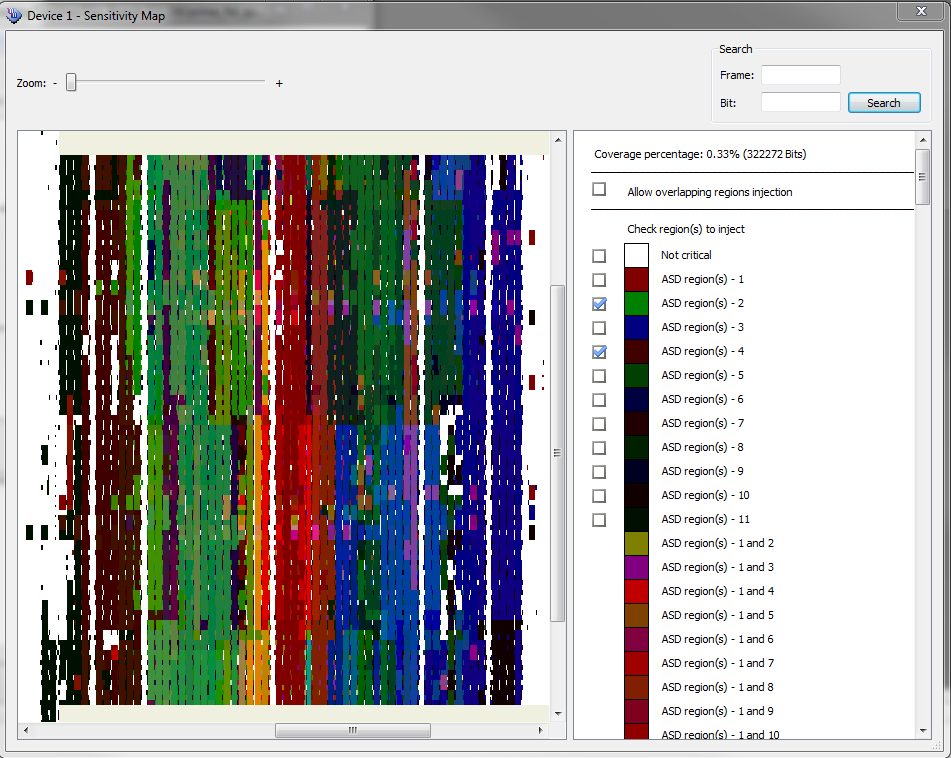

    Figure 11. Device Sensitivity Map Viewer
  2. In the Check region(s) to inject column, select one or more ASD regions where you want the Fault Injection Debugger to inject faults.
