5.2. Core Parameters

Depending on which Hard IP Mode you choose in the Top-Level Settings tab, you will see different tabs for setting the core parameters.

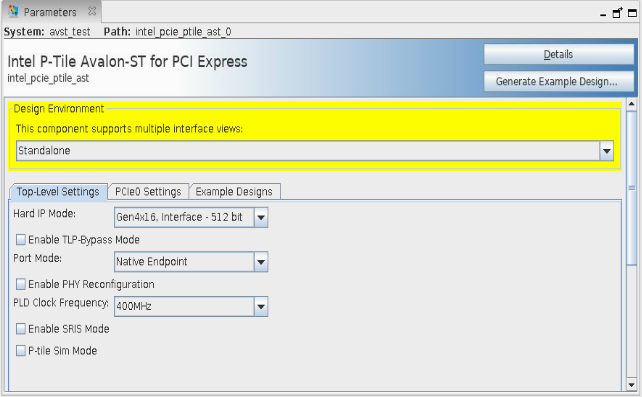

Figure 51. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a x16 Hard IP Mode If you choose a 1x16 or 1x8 mode (either Gen4 or Gen3), only the PCIe0 Settings tab will appear.
Note: You can enable the TLP Bypass mode in the Top-Level Settings tab of the IP Parameter Editor as shown in the figure below:

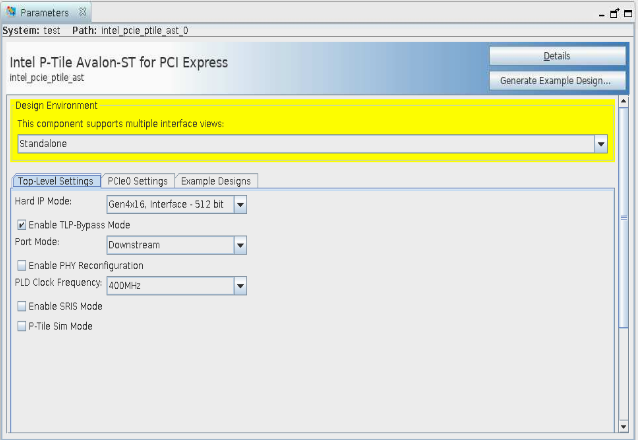

Figure 52. Enabling TLP Bypass Mode

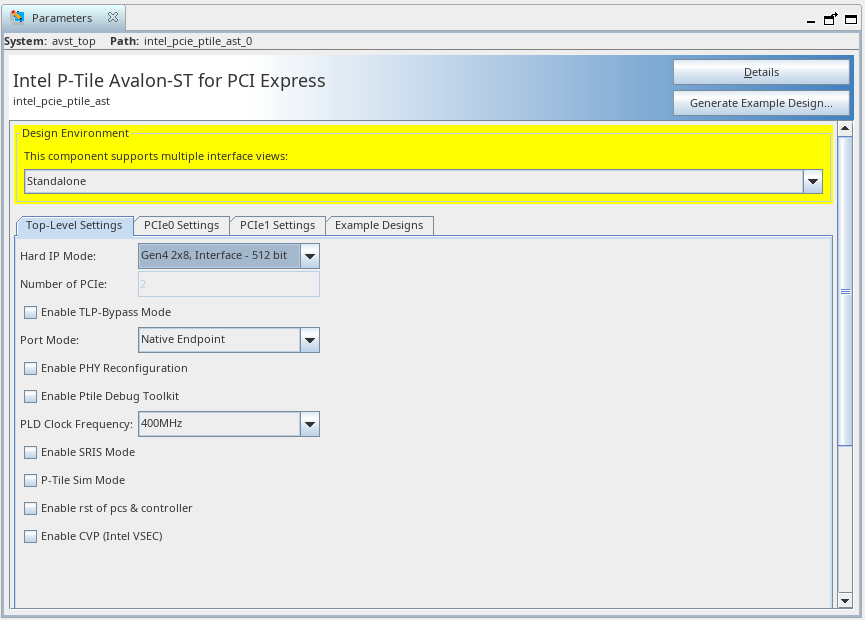

Figure 53. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a 2x8 Hard IP ModeIf you choose a 2x8 mode (either Gen4 or Gen3), the PCIe0 Settings and PCIe1 Settings tabs will appear.

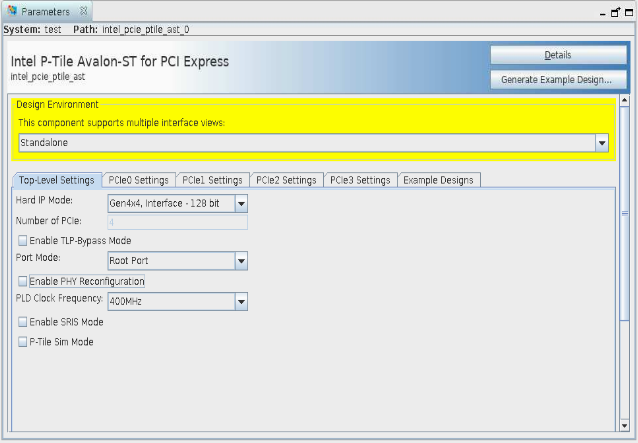

Figure 54. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a x4 Hard IP ModeIf you choose a x4 mode (either Gen4 or Gen3), the PCIe0 Settings, PCIe1 Settings, PCIe2 Settings and PCIe3 Settings tabs will appear.

Section Content
Avalon Parameters
Base Address Registers
PCI Express and PCI Capabilities Parameters
Device Identification Registers
Configuration, Debug and Extension Options
