3.2. Core Parameters

Depending on which Hard IP Mode you choose in the Top-Level Settings tab, you will see different tabs for setting the core parameters.

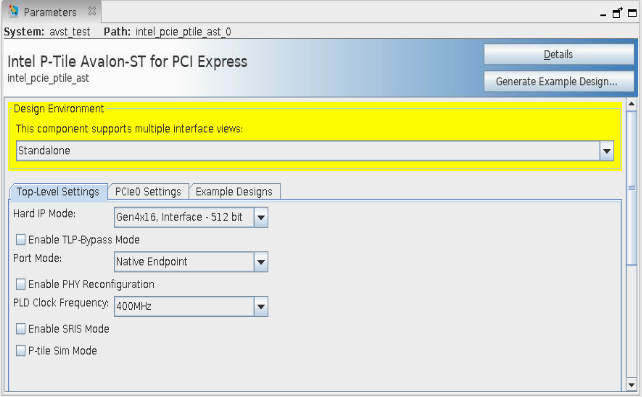

Figure 10. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a x16 Hard IP Mode If you choose a x16 mode (either Gen4 or Gen3), only the PCIe0 Settings tab will appear.
Note: You can enable the TLP Bypass mode in the Top-Level Settings tab of the IP Parameter Editor as shown in the figure below:

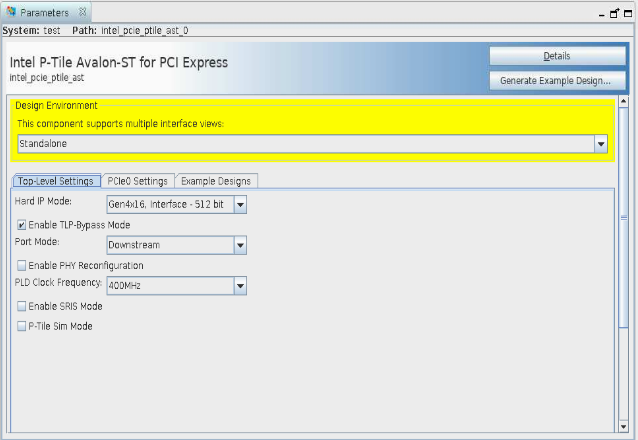

Figure 11. Enabling TLP Bypass Mode

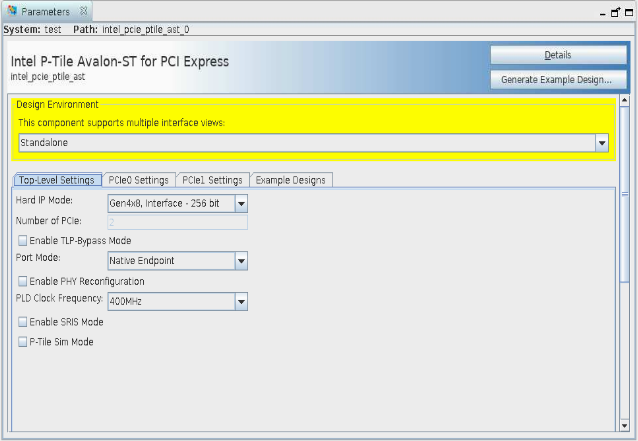

Figure 12. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a x8 Hard IP Mode If you choose a x8 mode (either Gen4 or Gen3), the PCIe0 Settings and PCIe1 Settings tabs will appear.

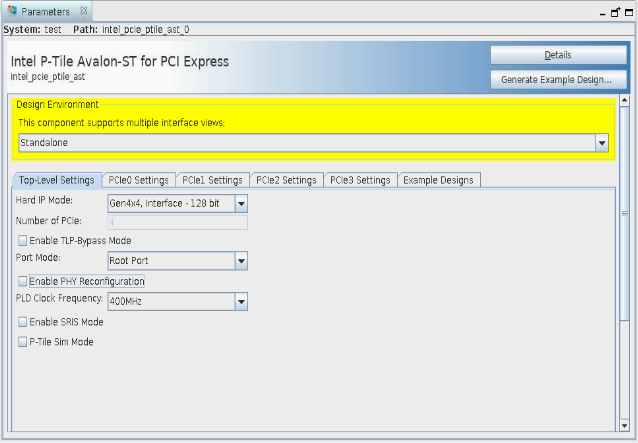

Figure 13. Intel P-tile Avalon® -ST Top-Level IP Parameter Editor for a x4 Hard IP ModeIf you choose a x4 mode (either Gen4 or Gen3), the PCIe0 Settings, PCIe1 Settings, PCIe2 Settings and PCIe3 Settings tabs will appear.
