Window: Uncore Event Count - Hardware Events

Use the Uncore Event Count window to analyze the event count for uncore events.

To access this window: Select the Hardware Events viewpoint and click the Uncore Event Count sub-tab in the result tab.

The Uncore Event Count window includes the following panes:

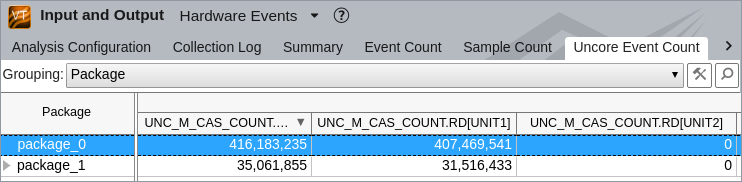

Uncore Events Pane

Uncore events happen on structures shared between all CPUs in a package (for example, 10 CPUs on a single package). This makes it impossible to associate any single uncore event with any code context and show call stacks.

By default, the uncore events are grouped by package:

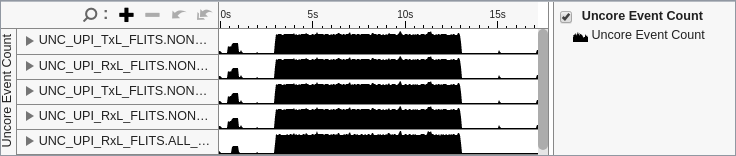

Timeline Pane

NOTE:

If there are no uncore events selected for the analysis, the Timeline pane is empty.

Parent topic: User Interface Reference
