2.7. Debugging and Monitoring the Drive-On-Chip with Functional Safety Design Example for Agilex 7 Devices with Python GUI

  1. Open a terminal and run:
    >> cd <project>/gui >> python __main__.py
  2. Select the right JTAG master from the menu. Usually AGFB01…0)

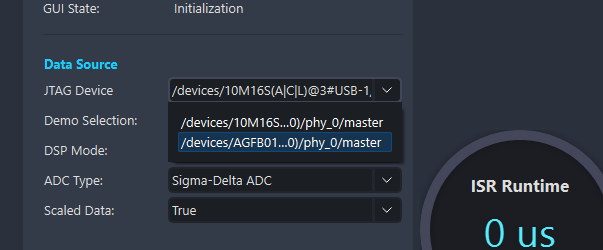

    Figure 8. Select the Agilex device in the JTAG Device dropdown menu
  3. Refer to AN 994: Drive-on-Chip Design Example for Agilex 7 Devices to understand how to use the GUI for the Drive-On-Chip application.

Section Content
GUI Safety Function Tab for the Drive-On-Chip with Functional Safety Design Example for Agilex 7 Devices
