2.1. Creating an EMIF Project

You must create an Intel® Quartus® Prime project before generating the Intel Agilex® 7 M-Series EMIF IP and design example.
  1. Launch the Intel® Quartus® Prime software and select File > New Project Wizard. Click Next.

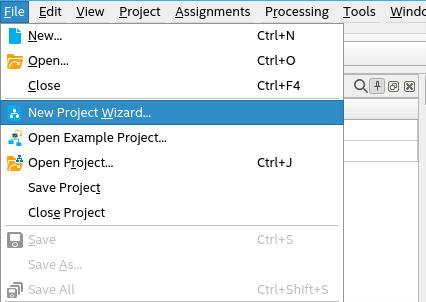

    Figure 2. File Menu
  2. Specify a directory (<user project directory>), a name for the Intel® Quartus® Prime project (<user project name>), and a top-level design entity name (<user top-level instance name>) that you want to create.
  3. Verify that Empty Project is selected.
  4. Under Family, select Intel Agilex® 7 .
  5. Under Name filter, type the device part number.
  6. Under Available devices, select the appropriate device.

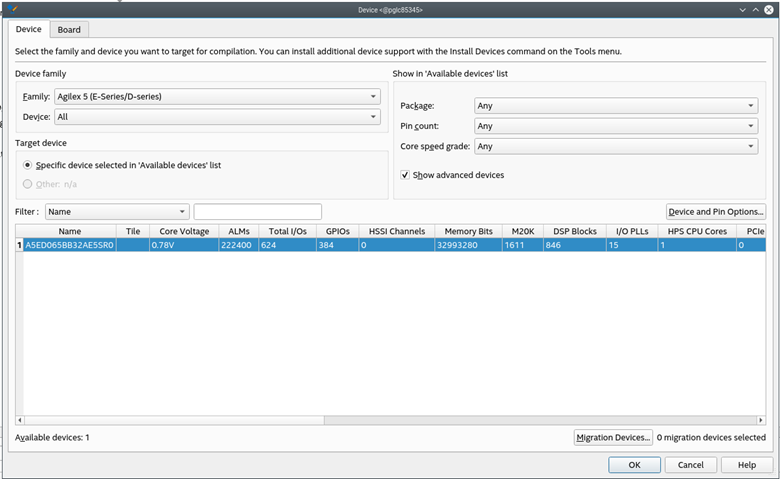

    Figure 3. Family, Device, and Board Settings
  7. Click Finish.
