2.4.2.1. Add Acquisition Clock

Specify the reference clock that Signal Tap uses during acquisition.
Perform the following steps in the Signal Configuration pane:
  1. Next to Clock, click … to open the Node Finder.
  2. Set the following search parameters:
    Field Value
    Named *
    Look in top|u_blinking_led

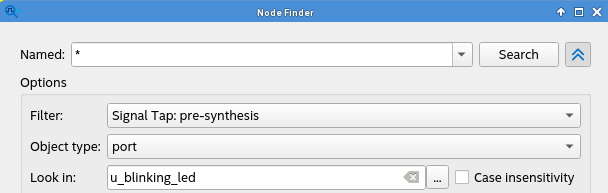

    Figure 22. Search Parameters to Find the Clock
  3. Click Search.

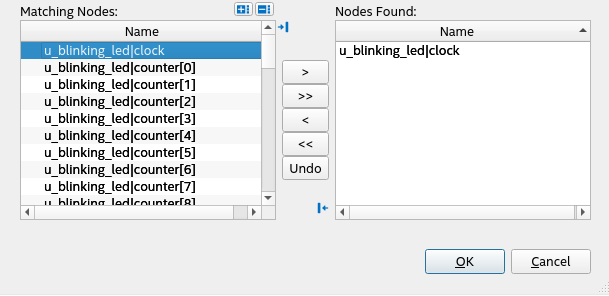

    Figure 23. Select Clock in Node Finder
  4. Select clock, click >, and then click OK.
