1.5. View Signal Waveforms

Follow these steps to view signals in the testbench_1.v simulation waveform:
  1. Click the Wave window. The simulation waveform ends at 11030 ns, as the testbench specifies. The Wave window lists the CLOCK, WE, OFFSET, RESET_N, and RD_DATA signals.

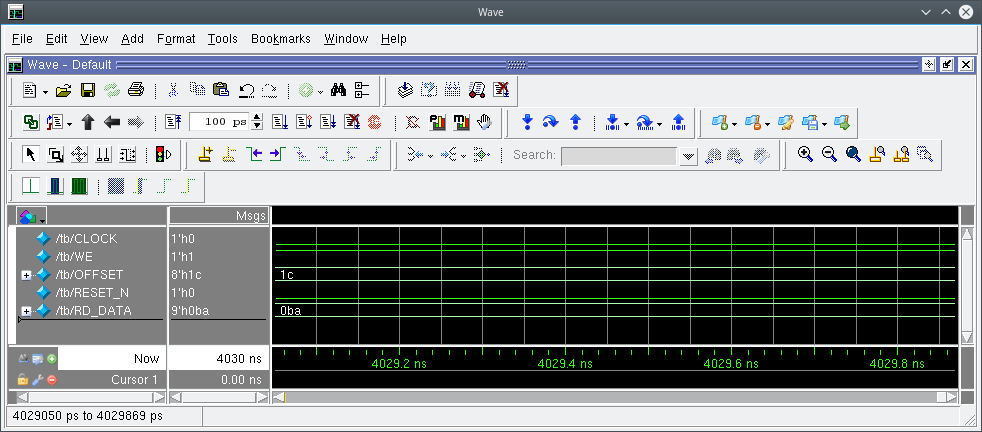

    Figure 6.  Questa* Intel® FPGA Edition Wave Window
  2. Click the Sim tab to view the signals in the top-level pll_ram.v design. The Sim window synchronizes with the Objects window.
  3. Expand the tb folder in the sim tab to view the top-level module signals.
  4. Expand the Test1 folder. The Objects window displays UP_module, DOWN_module, PLL_module, and RAM_module signals.
  5. In the Sim window, select a module under Test1 to display the module's signals in the Objects window.

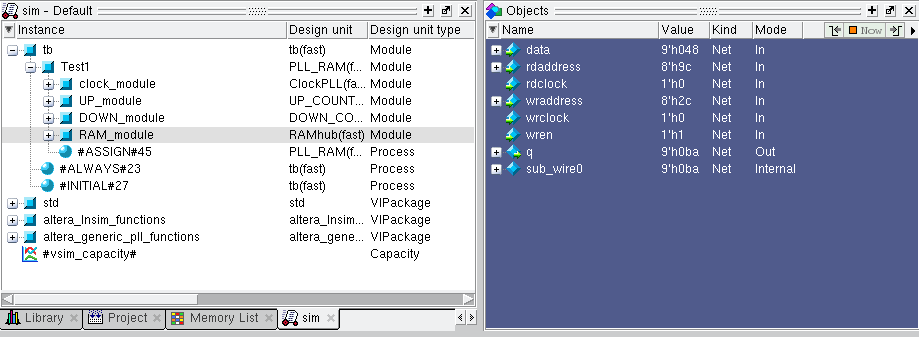

    Figure 7.  Questa* Intel® FPGA Edition Sim and Objects Windows
  6. View the simulation library files in the Library window.
Figure 8.  Questa* Intel® FPGA Edition Library Window
