1.4. Launch Simulation

To generate and run Questa* Intel® FPGA Edition automation script from within the Intel® Quartus® Prime Standard Edition software, follow these steps:
  1. Click Processing > Start Compilation to compile the design and generate the .do file. The Messages window indicates when compilation is complete.
  2. Click Tools > Run Simulation Tool > RTL Simulation. The Intel® Quartus® Prime Standard Edition software launches the Questa* Intel® FPGA Edition simulator and simulates the testbench_1.v file, according to your specifications in the Simulation settings.

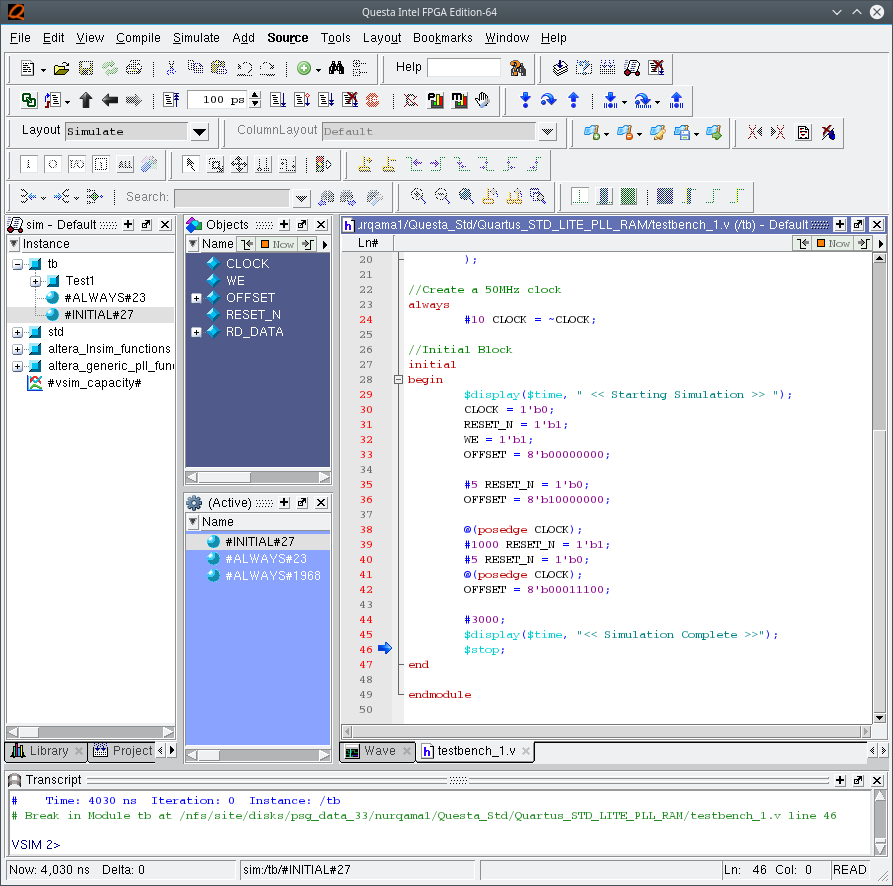

    Figure 5.  Questa* Intel® FPGA Edition GUI
