1.2. Open the Example Design

The PLL_RAM example design includes Intel® FPGA IP cores to demonstrate the basic simulation flow. Perform the following steps to open the design example:
  1. Download and unzip the quartus-std-lite-pll-ram design example.
  2. Launch the Intel® Quartus® Prime Standard Edition software version 21.1.
  3. To open the example design project, click File > Open Project, select the pll_ram.qpf project file, and then click OK.

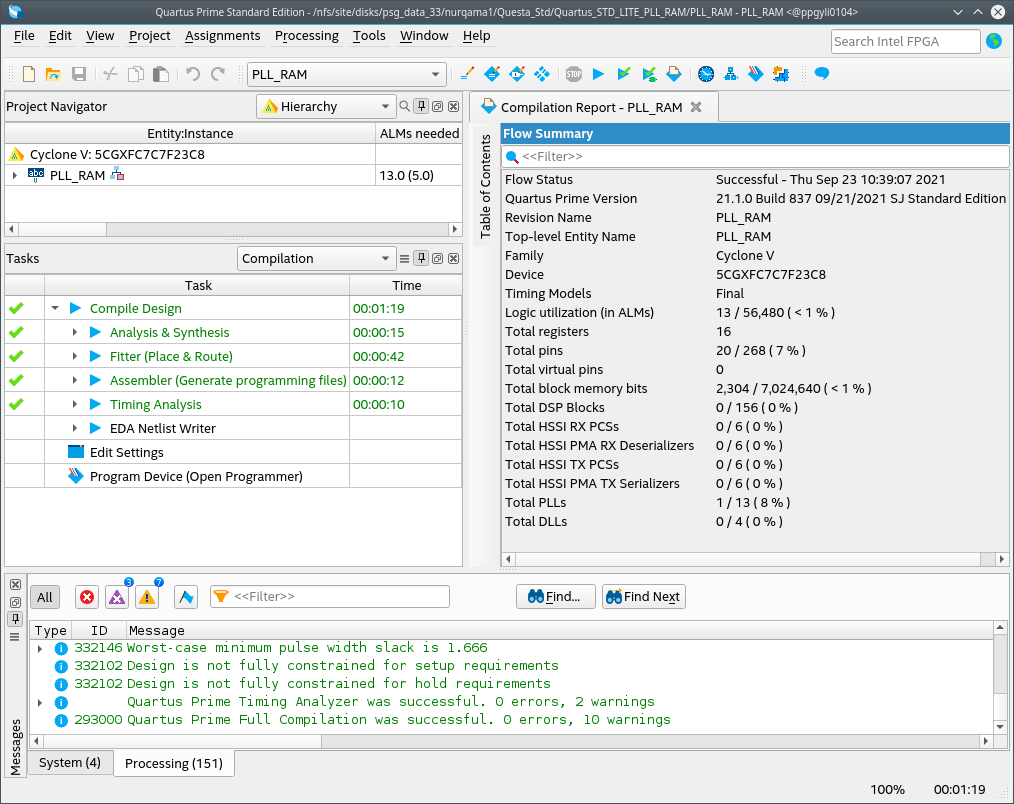

    Figure 1.  pll_ram Project in the Intel® Quartus® Prime Standard Edition
