Simulink Model Description for the DC-DC Converter Design Example

The simulation and code generation file, <project directory>/matlab/vvc_simpower.mdl simulates a bidirectional DC-DC VVC converter using MATLAB Simulink Simpower Systems.

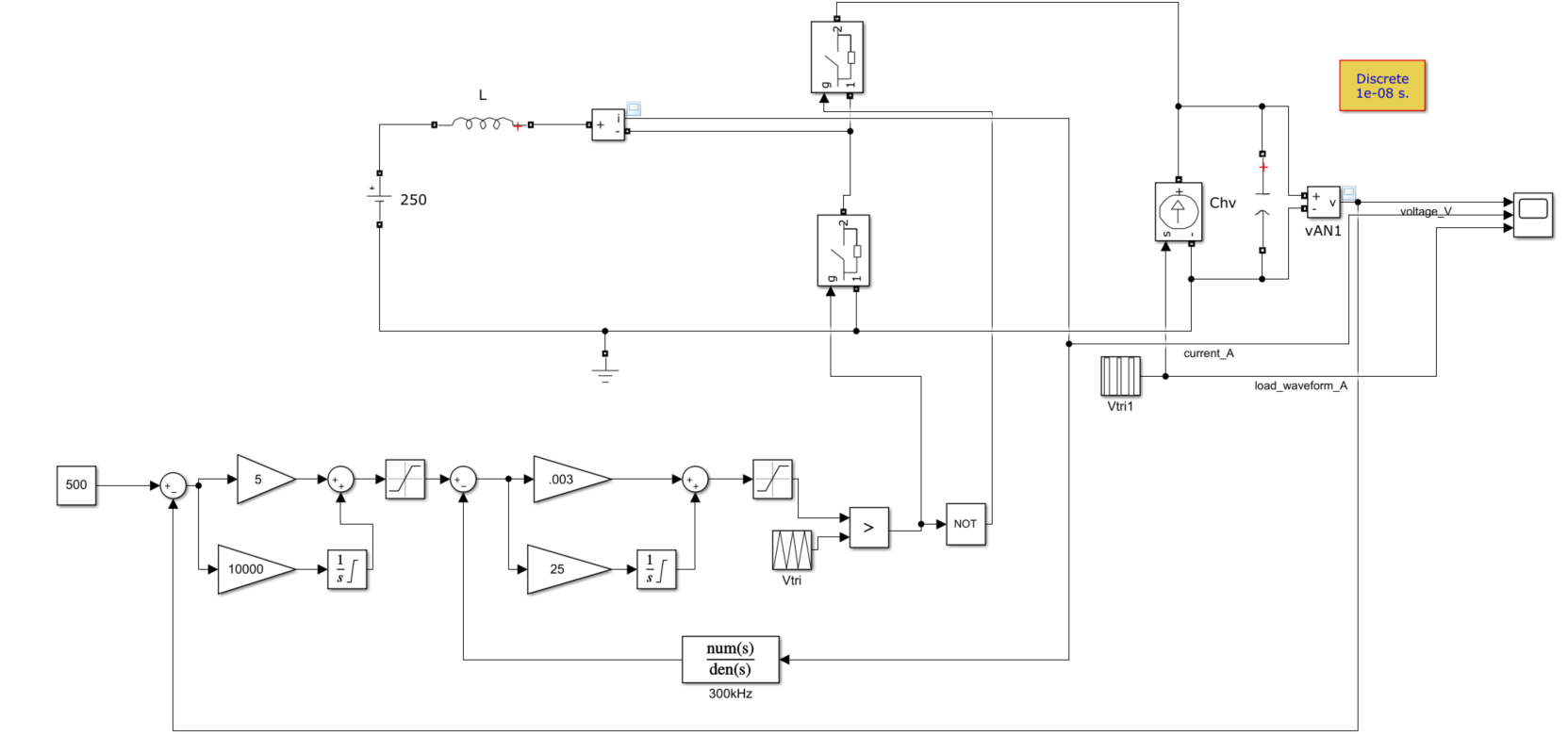

Figure 6. DC-DC Converter Simulation using MATLAB Simulink Simpower Systems

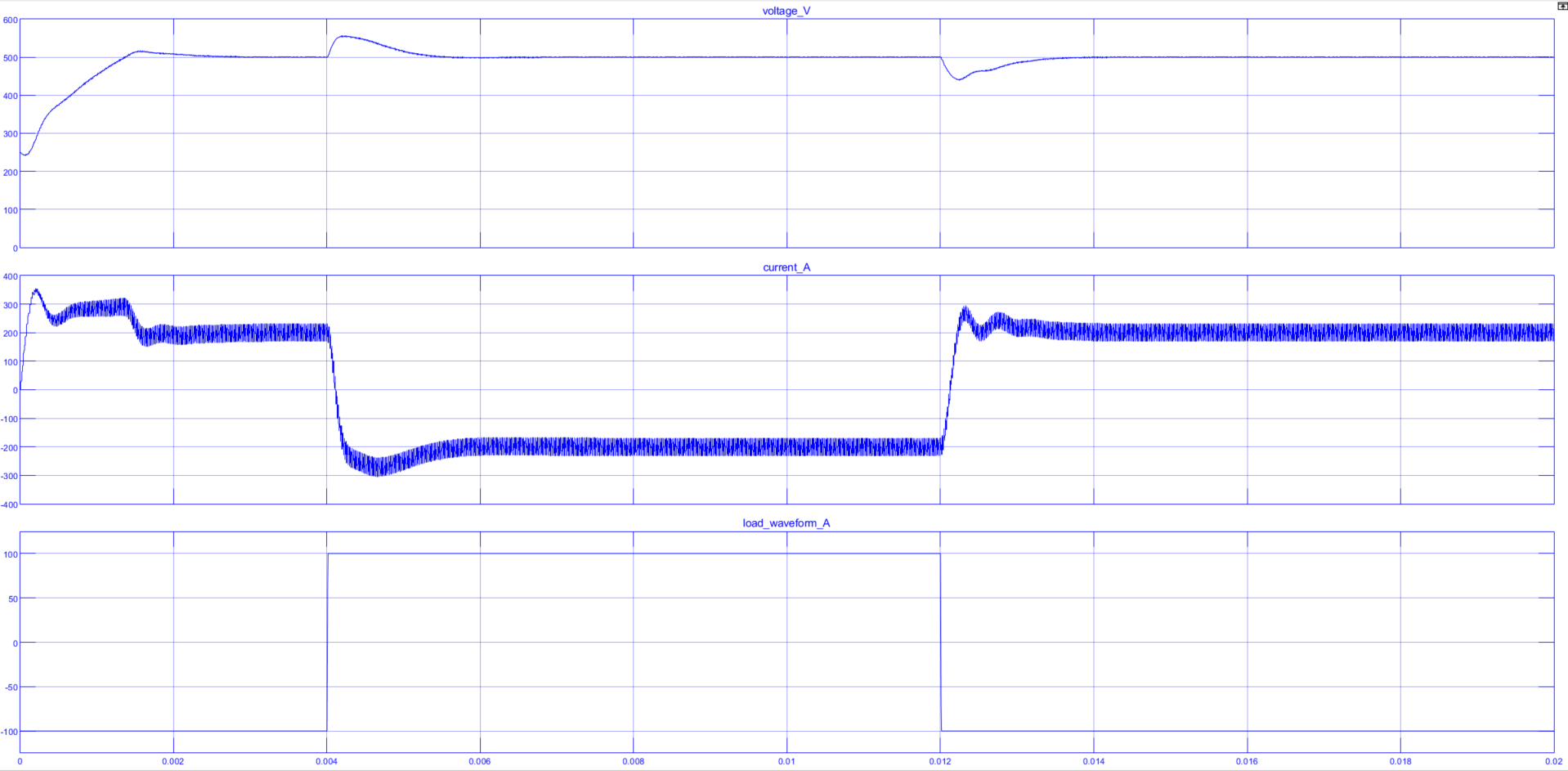

Figure 7. Simulink Waveforms

Top: output voltage [V], Middle: inductor current [A], Bottom: load waveform current [A]
