5.2. Generating Simulator Setup Script Templates

You can use simulator setup scripts to help you readily simulate IP cores in your design.

Follow these steps to generate the vendor-specific simulator setup script templates for the IP modules in your design. You can then customize these templates for your specific simulation goals.

  1. To compile your design, click Processing > Start Compilation. The Messages window indicates when compilation is complete.
  2. Click Tools > Generate Simulator Setup Script for IP.
  3. Retain the default settings for the Output directory and also the Use relative paths whenever possible option.
  4. To generate the setup script templates and vendor-specific sub-folders, including xcelium/ and common/ in the specified output directory, click OK.

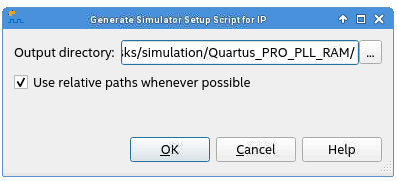

    Figure 9. Generate Simulator Setup Script for IP Dialog Box
