5.5.1. ALTFP_MULT Design Example: Understanding the Simulation Waveform

The simulation waveform in this design example is not shown in its entirety. Run the design example files in the ModelSim* - Intel® FPGA Edition software to see the complete simulation waveforms.

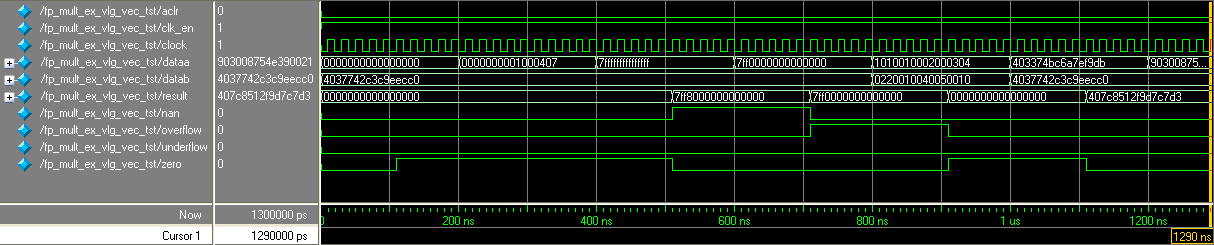

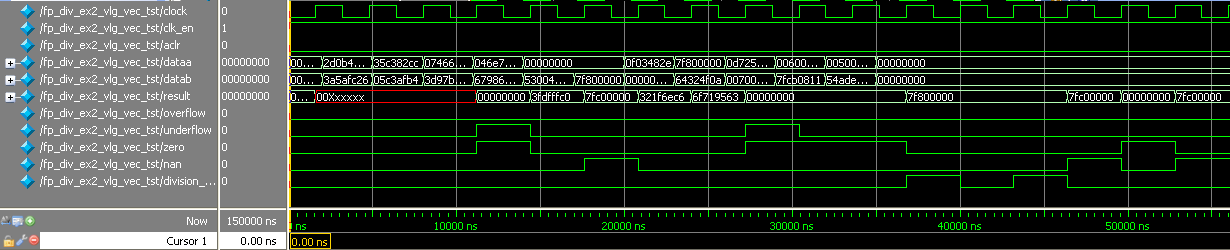

Figure 19. ALTFP_MULT Simulation WaveformThis figure shows the expected simulation results in the ModelSim* - Intel® FPGA Edition software.

This design example implements a floating-point multiplier for the multiplication of double-precision format numbers. All the optional input ports (clk_en and aclr) and output ports (overflow, underflow, zero, and nan) are enabled.

In this example, the latency is set to 6 clock cycles. Therefore, every multiplication result appears at the result port 6 clock cycles later.

Table 29.  Summary of Input Values and Corresponding OutputsThis table lists the inputs and corresponding outputs obtained from the simulation in the waveform.
Time Event
0 ns, start-up dataa[] value: 0000 0000 0000 0000h

datab[] value: 4037 742C 3C9E ECC0h

Output value: All values seen on the output port before the 6th clock cycle are merely due to the behavior of the system during start-up and should be disregarded.

110 ns Output value: 0000 0000 0000 0000h

Exception handling ports: zero asserts

The multiplication of zero at the input port dataa[], and a non-zero value at the input port datab[] results in a zero.

600 ns dataa[] value: 7FF0 0000 0000 0000h

datab[] value: 4037 742C 3C9E ECC0h

This is the multiplication of an infinity value and a normal value.

710 ns Output value: 7FF0 0000 0000 0000h

Exception handling ports: overflow asserts

The multiplication of an infinity value and a normal value results in infinity. All multiplications with an infinity value results in infinity except when infinity is multiplied with a zero.
