1. AN 706: Mapping HPS IP Peripheral Signals to the FPGA Interface

1.3.1. EMAC Test

Examples of commands that can be executed on EMAC0 are:
>udhcpc
Activate the dhcp server to request an IP address.

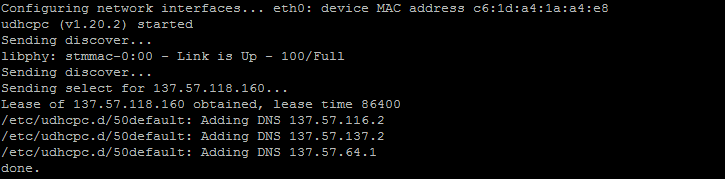

Figure 10.  udhcpc Command Output
>ifconfig eth0
Initialize and enable or disable the network interface.

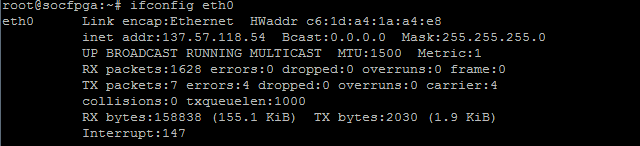

Figure 11.  ifconfig eth0 Command Output
>ethtool eth0
Display and allow edits to the EMAC device parameters.

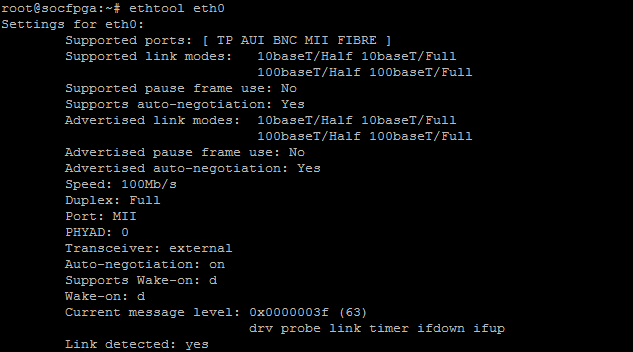

Figure 12.  ethtool eth0 Command Output
