7.3. E-Tile Channel Placement Tool

Use the Intel® Stratix® 10 E-Tile Channel Placement Tool to plan your channel placement for Serial Lite IV Intel FPGA IP.

E-tile supports Data Centers, 5G networks, Smart Grid, and other market segments. Ethernet, CPRI, and OTN are the backbone of these emerging and traditional technologies. The E-Tile Channel Placement Tool, in conjunction with the Device Family Pin Connection Guidelines, allows you to swiftly plan protocol placements in the product prior to reading comprehensive documentation and implementing designs in Intel® Quartus® Prime software.

The Excel-based E-Tile Channel Placement Tool, supplemented with Instructions, Legend, and Revision tabs. Refer to the related information for the download link.

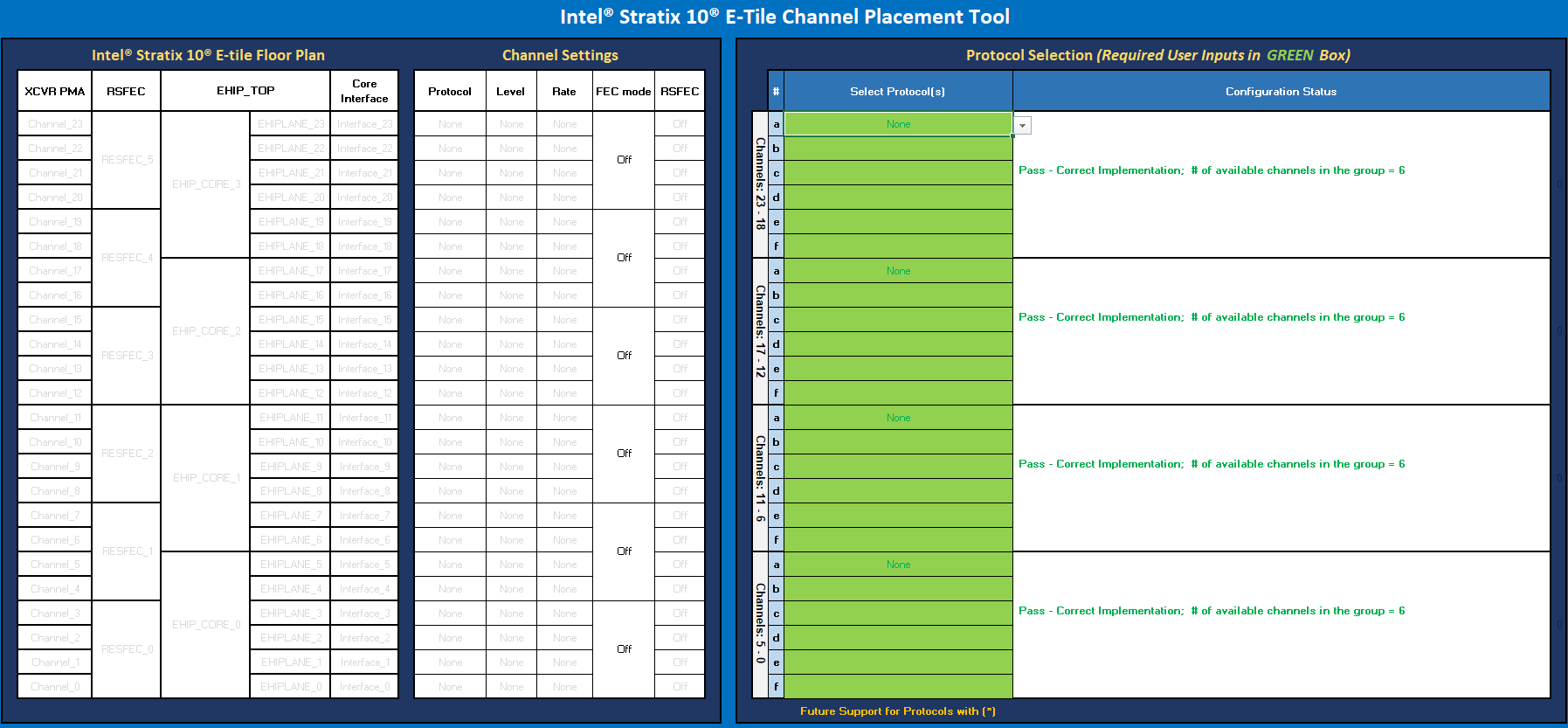

Figure 30. E-Tile Channel Placement Tool
