4.1.1.1. Example of Converting I/O Buffer

In this example, the clk, a, and b inputs are global signals, and the a and b inputs use the IBUFG I/O Standard.

Converting BUFG, IBUFG, and OBUF in Verilog HDL.

Original Verilog HDL Code in the Vivado* Software

module Top (a, b, c, clk);
 input a, b, clk;
 output c;
 reg c_buf;
 wire a_buf, b_buf, clk_buf;
 BUFG inst1 (.O (clk_buf), .I (clk));
 IBUFG #("FALSE", "SSTL12") inst2 (.O (a_buf), .I (a));
 IBUFG #("FALSE", "SSTL18_I") inst3 (.O (b_buf), .I (b));
 OBUF inst4 (.O (c), .I (c_buf));
 always @ (posedge clk_buf) c_buf <= a_buf & b_buf;
endmodule

Converted Verilog HDL Code in the Intel® Quartus® Prime Pro Edition Software

module Top (a, b, c, clk);
    input a, b, clk;
    output c;

    reg c_buf;
    wire a_buf, b_buf, clk_buf;

    assign clk_buf = clk;
    assign a_buf = a;
    assign b_buf = b;
    assign c = c_buf;

    always @ (posedge clk_buf)
	  c_buf <= a_buf & b_buf;
endmodule

Converting BUFG, IBUFG, and OBUF in VHDL.

Original VHDL Code in the Vivado* Software

LIBRARY ieee;
USE ieee.std_logic_1164.all;
ENTITY buf_top IS PORT(
    a, b : IN STD_ULOGIC; clk : IN STD_ULOGIC; c : OUT STD_ULOGIC);
END buf_top;

ARCHITECTURE Behave OF buf_top IS
    SIGNAL a_buf, b_buf, c_buf, clk_buf : STD_ULOGIC; COMPONENT BUFG
    PORT (O : OUT STD_ULOGIC; I : IN STD_ULOGIC); END COMPONENT;
    COMPONENT IBUFG
        generic(IBUF_LOW_PWR : boolean := FALSE;
                IOSTANDARD : String := "DEFAULT");
    PORT (O : OUT STD_ULOGIC; I : IN STD_ULOGIC); END COMPONENT;

    COMPONENT OBUF
    PORT (O : OUT STD_ULOGIC; I : IN STD_ULOGIC); END COMPONENT;

    BEGIN
        inst1 : BUFG
        PORT MAP (O => clk_buf, I => clk);
        inst2 : IBUFG
        generic map(
            IBUF_LOW_PWR => FALSE,
            IOSTANDARD => "SSTL12")
        PORT MAP (O => a_buf,I => a);
        inst3 : IBUFG
        generic map(
            IBUF_LOW_PWR => FALSE,
            IOSTANDARD => "SSTL18_I")
        PORT MAP (O => b_buf, I => b);
        inst4 : OBUF
        PORT MAP (O => c, I => c_buf);

        PROCESS(clk_buf) BEGIN
            IF (clk_buf'event and clk_buf = '1')
                            THEN c_buf <= a_buf AND b_buf;
            END IF;
        END PROCESS;
END Behave;

Converted VHDL Code in the Intel® Quartus® Prime Pro Edition Software

LIBRARY ieee;
USE ieee.std_logic_1164.all;

ENTITY Top IS
    PORT(
    a, b: IN STD_ULOGIC;
    clk: IN STD_ULOGIC;
    c: OUT STD_ULOGIC);
END Top;
ARCHITECTURE Behave OF Top IS
    SIGNAL a_buf, b_buf, c_buf, clk_buf: STD_ULOGIC;
    BEGIN
    PROCESS (a, b, c_buf, clk)
       BEGIN
	   clk_buf <= clk;
	   a_buf <= a;
	   b_buf <= b;
	   c <= c_buf;
    END PROCESS;

    PROCESS(clk_buf)
       BEGIN
	   IF (clk_buf'event and clk_buf = '1') THEN
	       c_buf <= a_buf AND b_buf;
	   END IF;
    END PROCESS;
END Behave;

To set the ports with specific assignments in the Intel® Quartus® Prime Pro Edition software, use the Assignment Editor.

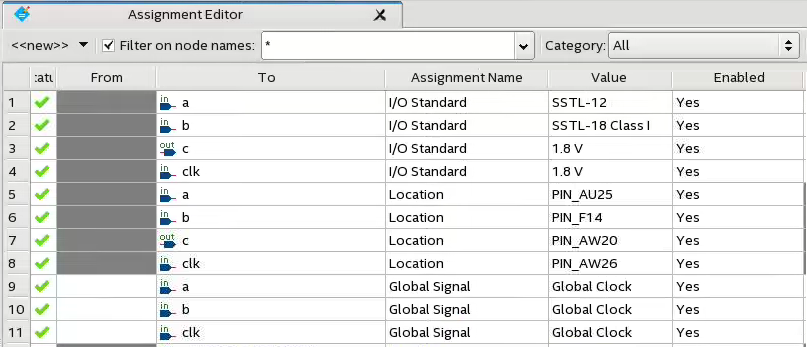

Figure 11. Global Signal and I/O Standard Assignments Using the Assignment Editor

In the figure, inputs a, b, and clk are assigned as global signals, with clk as the global clock. Input ports a and b are assigned with specific I/O standards, while other ports are automatically assigned with the device-specific default I/O standard.
