3.3.4.2. Create Timing Constraints with the Timing Analyzer GUI
To create timing constraints with the Timing Analyzer GUI:
- Create a timing netlist by clicking Netlist > Create Timing Netlist.
- Click File > New SDC File to open a new SDC file.
- From the Constraints menu, select the constraint you want to add..
The selected constraint's dialog box opens, and allows you to set the constraint's parameters.

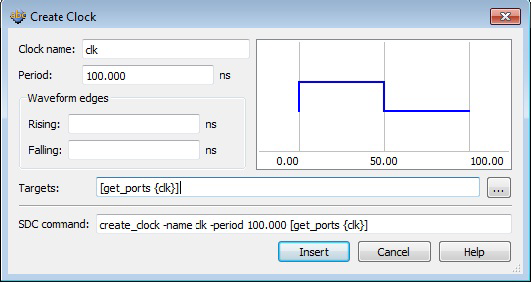

Figure 5. Example: Create Clock Dialog Box - Enter the values in the dialog box, and click Insert to insert the SDC command into the open SDC file.
- Save the updated SDC file.
The constraints are available on the Constraint menu are:
|
|
