3.5.1. Program the FPGA

  1. Connect a FPGA programming cable to the Intel® Stratix® 10 FPGA Development Board
  2. On the Tools menu, select Programmer
  3. In the Programmer, click Hardware Setup and verify the Intel® Stratix® 10 FPGA Development Board is detected in Hardware Setting tab and JTAG Settings tab
  4. Select Auto Detect to detect the JTAG device chain
  5. Select the target FPGA device in the JTAG chain, select Change File, and select the pcie_ed.sof
  6. Select Start to start programming

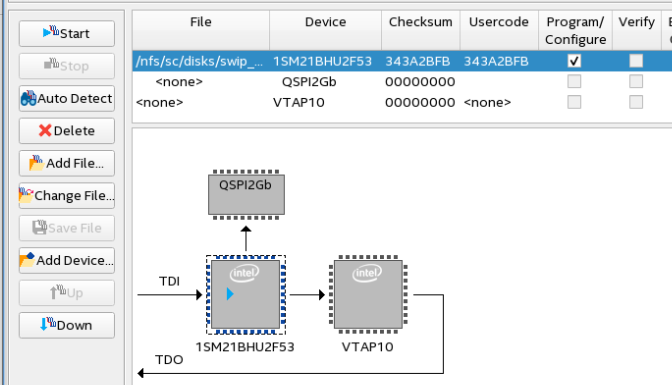

    Figure 40. Programming Stratix 10 MX FPGA Development Board
