3.3.2.1. Downloading Software and Device Support Files

To download Intel FPGA software with individual executable and device support files, follow these steps:

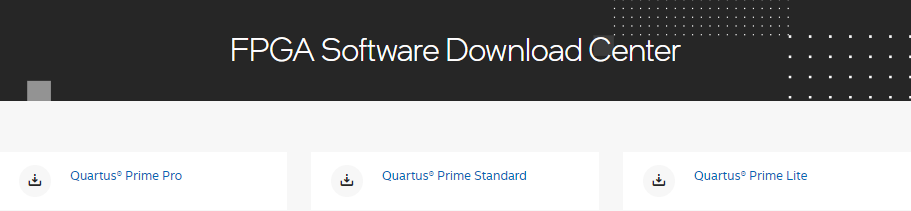

  1. Visit the FPGA Software Download Center page.
  2. Click the desired Quartus® Prime Design Software option.
  3. In the displayed page, refine your selection using the Software Type, Software Package, Version, and Operating Systems drop-down options to download the desired software.
  4. If you are proceeding to download the latest edition of the Quartus® Prime design software, scroll down the page, select the Individual Files tab and locate one of the following sections to download the desired files:
    • Complete Download to download the complete package with the device support and add-on software files.
    • Individual Files to download the packages in parts and Questa*-Intel® FPGA Starter Edition software.
    • Devices to download the device support files.
    • Add-On and Stand-Alone Software to download individual executable files of the add-on software.
  5. Click Download <file_name> to download the desired software.
  6. Click Accept to accept the Software License Agreement.
File download starts automatically.
Important:

Wait for all the files to download completely before beginning installation. Intel recommends verifying the sha1sum <filename> to ensure the file downloaded completely. The sha1 value must match with that mentioned on the webpage. Example SHA1 shown in the following image:

Verify the checksum in the following method:

  • Linux OS: sha1sum <filename>
  • Windows OS: In the Command prompt window, type certutil -hashfile <filename>
