3.1.1. Link Monitor Tabs and Settings

The Link Monitor module of the Ethernet Link Inspector has three tabs. Each tab implements various Control and Status Registers (CSR) of the selected Ethernet IP core. There is also a Continuous Read All Registers option, which continuously polls the status of all the tabs.

Table 3.  Link Monitor GUI Tabs
Tab Description
MAC & PCS

Resets the IP core, reads the MAC configuration and checks the high level PCS status.

  • Resets: Implements the RESET register.
  • MAC Status: Shows the status of TX MAC registers and RX MAC registers.
  • PCS Status: Shows the status of PCS registers.
  • FEC Status: Shows the status of FEC registers.
Statistics
  • Displays MAC statistics registers for TX and RX traffic.
  • Displays FEC statistics.
PMA
  • Displays KR/KR4 registers that includes Auto Negotiation and Link Training.
  • Displays PMA parameters such as differential output voltage (VOD), continuous time linear equalizer (CTLE), distributed feedback equalizer (DFE), and etc.
Help Displays link bring up guidelines

The following figures show the Link Monitor GUI tabs and are related to the 25G E-tile Hard IP for Ethernet Intel® FPGA IP. The availability of each tab depends on IP selection and its features.

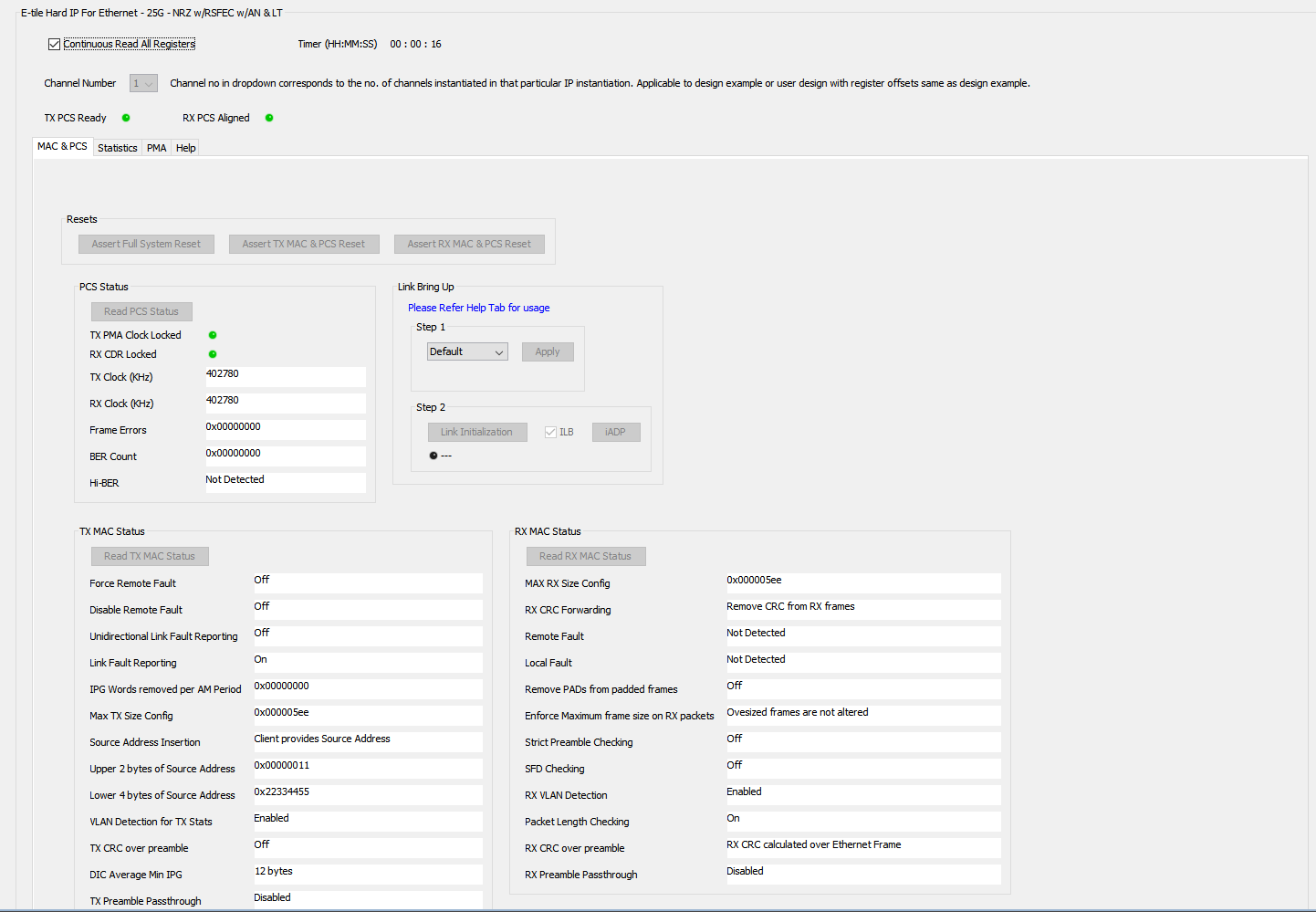

Figure 2. Example MAC & PCS Tab

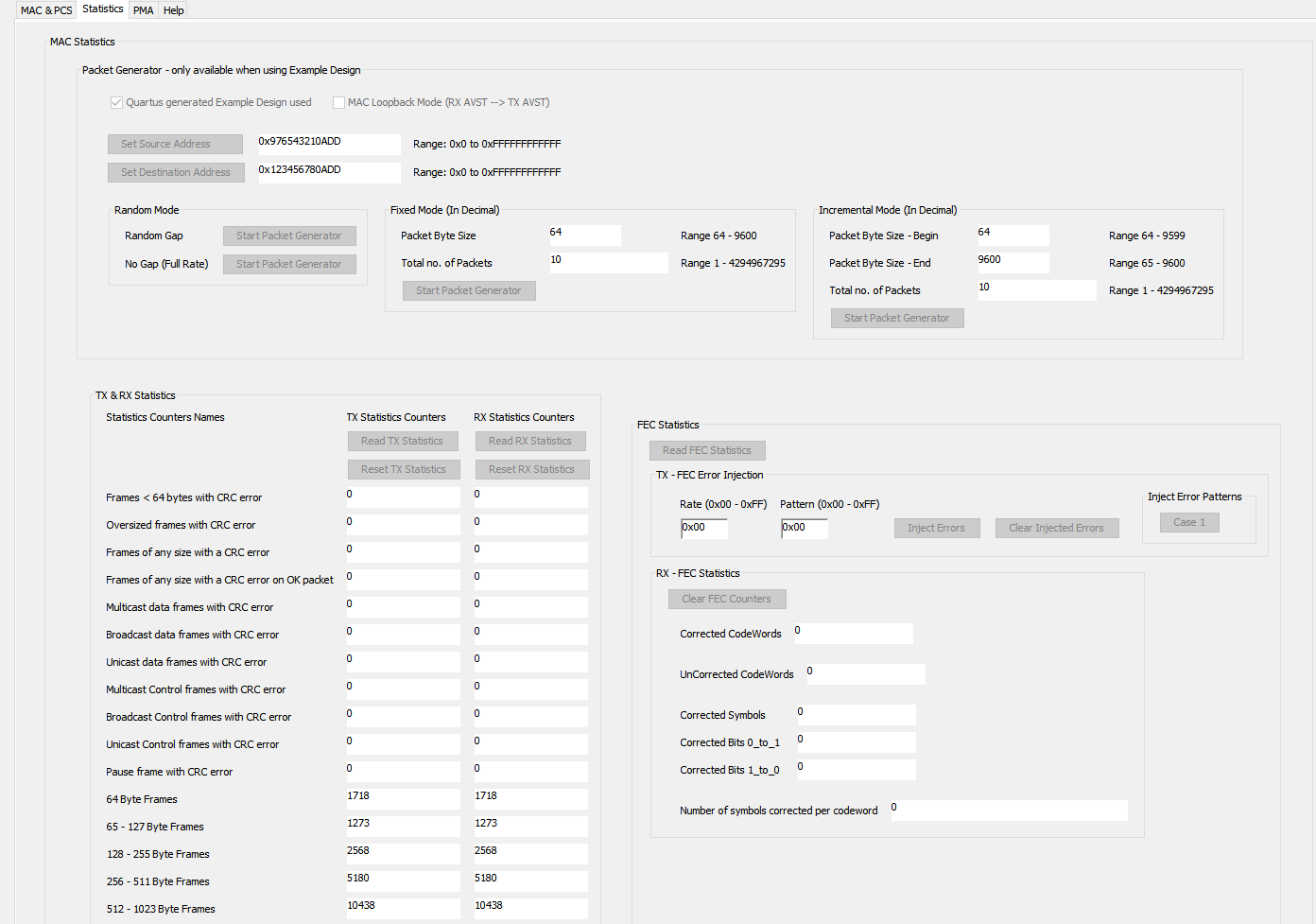

Figure 3. Example Statistics Tab
Figure 4. Example PMA Tab

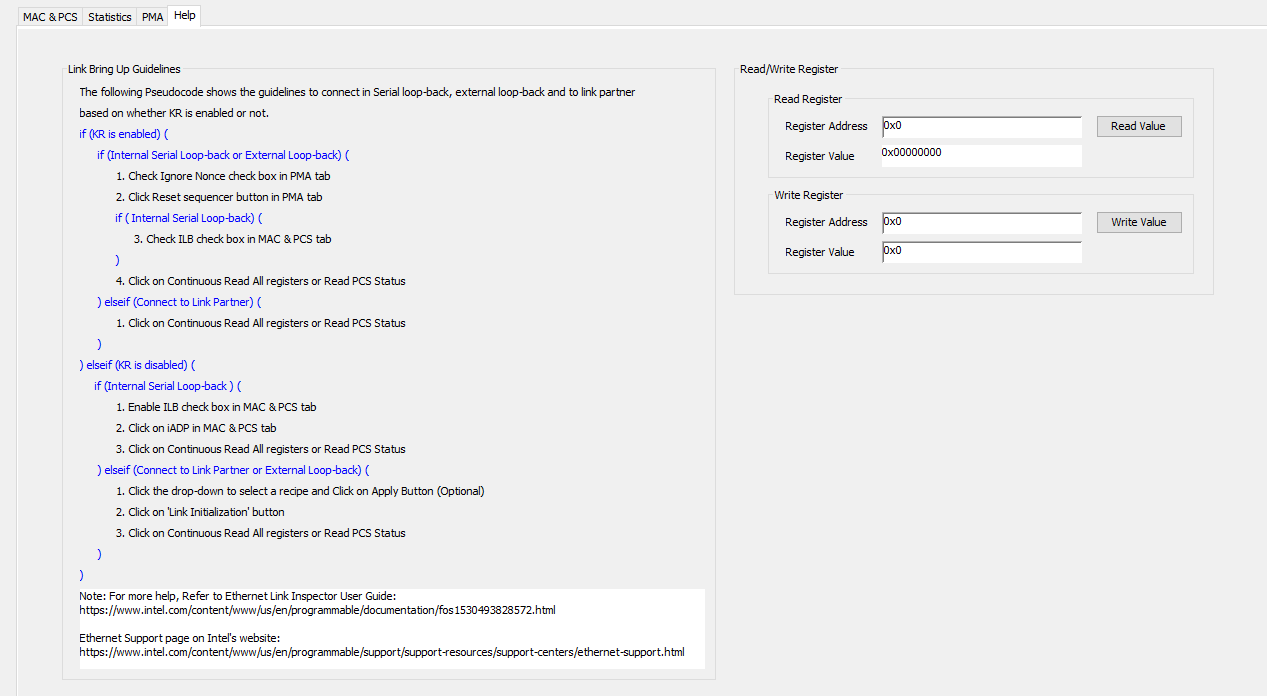

Figure 5. Example Help TabThe Read/Write Register section allows you to read and write values from and to the registers. Register address starts with 0x followed by the effective address. The address includes base address, word offset, and channel offset.
