53.2. White Balance Correction IP Parameters

The IP offers run-time and compile-time parameters.
Table 1109.  White Balance Correction IP Parameters
Parameter Values Description
Video Data Format
Lite mode On The IP only supports lite mode
Input bits per color sample 8 to 16 Select the number of input bits per color sample.
Output bits per color sample 8 to 16 Select the number of output bits per color sample.
Number of color planes at the input 1 The IP only supports 1 color plane at its input
Number of color planes at the output 1 The IP only supports 1 color plane at its output
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel.
Maximum Frame Size
Maximum field height 1k, 2k, 4k, 8k, 16k Specify the maximum height of incoming frames
Maximum field width 2k, 4k, 8k, 16k Specify the maximum width of incoming frames
General
Pipeline ready signal On or off Turn on to add extra pipeline registers to the AXI4-S tready signals
Separate clock for control interface On or off Turn on for a separate clock for the control agent interface
Debug features On or off Turn on to read back frame information registers and debugging information registers via the control agent interface.

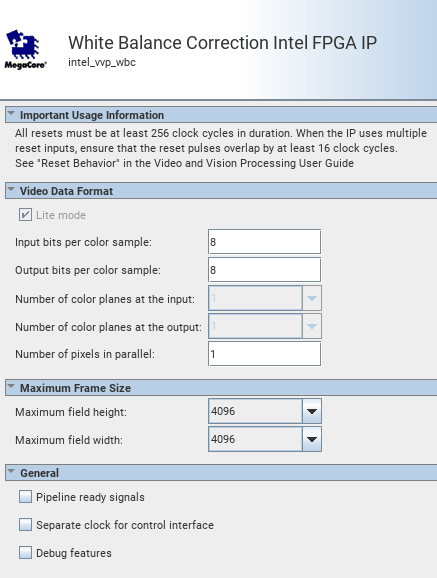

Figure 158. White Balance Correction IP GUI
