41.2. Switch IP Parameters
The IP offers compile- and run-time parameters.
Parameter | Values | Description |
---|---|---|
Video Data Format | ||
Intel FPGA streaming video interface type | Full, Lite, Full raster | Select the required streaming video protocol. |
Bits per color sample | 8 to 16 | Select the number of bits per color sample. |
Number of color planes | 1 to 4 | Select the number of color planes per pixel. |
Number of pixels in parallel | 1 to 8 | Select the number of color planes per pixel. |
Switch settings | ||
Number of inputs | 1 to 8 | Select the number of inputs required |
Number of outputs | 1 to 8 | Select the number of outputs required |
Crash switching | On or off | Select the type of switching required. Crash switching may cut short packets. |
Autoconsume inputs | On or off | Turn on to allow inputs to consume automatically during switches if required. |
All inputs are uninterrupted | On or off | For lite variants, turn on only when you can ensure that the start of another field always follows the end of each field. If you turn on for lite variants, the switch occurs at the start-of-field, as indicated by TUSER[0]. If you turn off for lite variants, the IP switch occurs at the end of each line, as indicated by TLAST. Full variants do not use this parameter, as the switch always occurs at field boundaries. |
‘tready’ signal present on switch streaming interfaces | On or off | For full raster variants only, select if tready signals are present on the switch inputs and output connections. |
Control settings | ||
Debug features | On or off | No effect. The Switch IP has no debugging features. |
Separate clock for control interface | On or off | Turn on for a separate clock for the control interface |

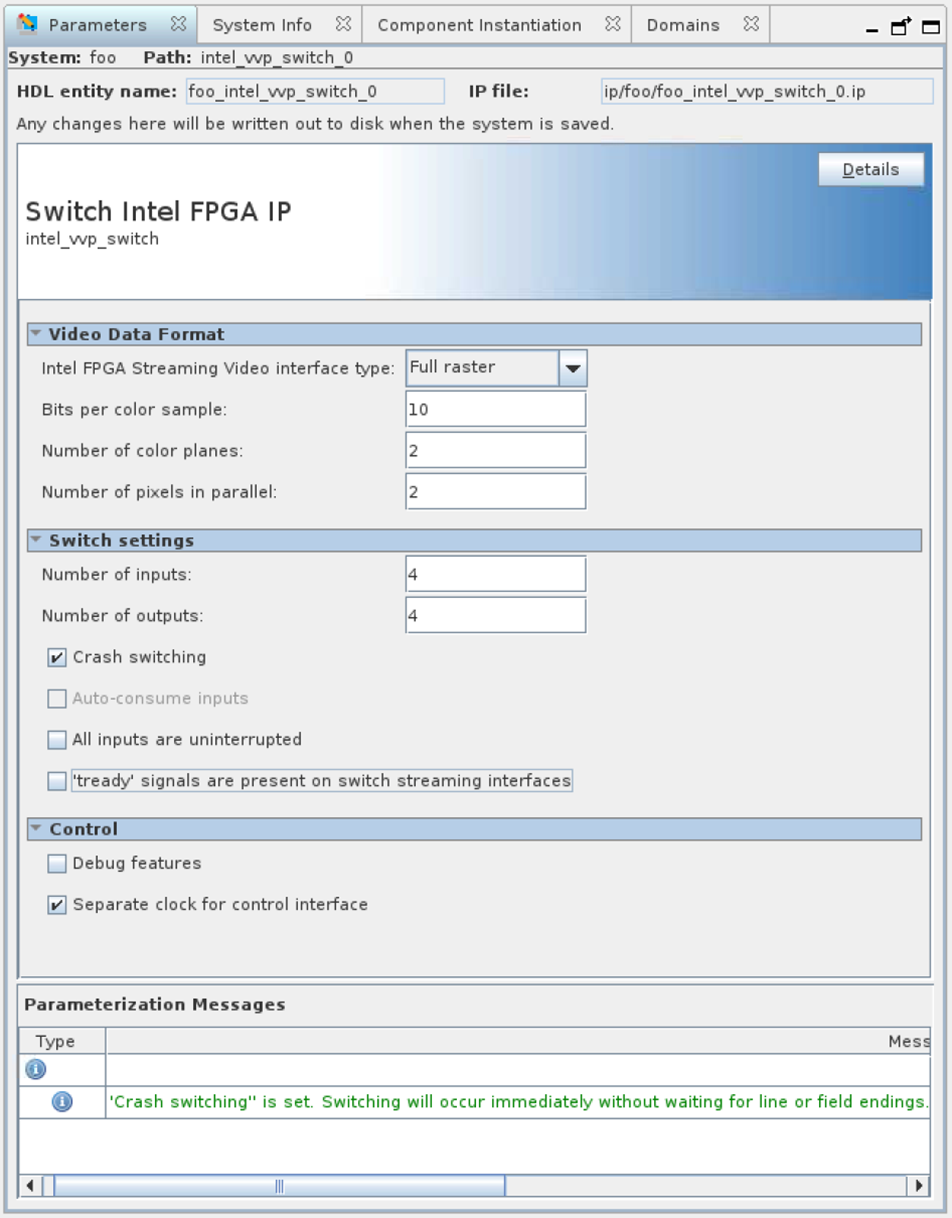

Figure 102. Switch IP GUI
