Video and Vision Processing Suite Intel® FPGA IP User Guide

Download PDF
ID 683329
Date 7/08/2024
Public

A newer version of this document is available. Customers should click here to go to the newest version.

Document Table of Contents
Document Table of Contents x
1. About the Video and Vision Processing Suite 2. Getting Started with the Video and Vision Processing IPs 3. Video and Vision Processing IPs Functional Description 4. Video and Vision Processing IP Interfaces 5. Video and Vision Processing IP Registers 6. Video and Vision Processing IPs Software Programming Model 7. Protocol Converter Intel® FPGA IP 8. 1D LUT Intel® FPGA IP 9. 3D LUT Intel® FPGA IP 10. Adaptive Noise Reduction Intel® FPGA IP 11. Advanced Test Pattern Generator Intel® FPGA IP 12. AXI-Stream Broadcaster Intel® FPGA IP 13. Bits per Color Sample Adapter Intel FPGA IP 14. Black Level Correction Intel® FPGA IP 15. Black Level Statistics Intel® FPGA IP 16. Chroma Key Intel® FPGA IP 17. Chroma Resampler Intel® FPGA IP 18. Clipper Intel® FPGA IP 19. Clocked Video Input Intel® FPGA IP 20. Clocked Video to Full-Raster Converter Intel® FPGA IP 21. Clocked Video Output Intel® FPGA IP 22. Color Plane Manager Intel® FPGA IP 23. Color Space Converter Intel® FPGA IP 24. Defective Pixel Correction Intel® FPGA IP 25. Deinterlacer Intel® FPGA IP 26. Demosaic Intel® FPGA IP 27. FIR Filter Intel® FPGA IP 28. Frame Cleaner Intel® FPGA IP 29. Full-Raster to Clocked Video Converter Intel® FPGA IP 30. Full-Raster to Streaming Converter Intel® FPGA IP 31. Genlock Controller Intel® FPGA IP 32. Generic Crosspoint Intel® FPGA IP 33. Genlock Signal Router Intel® FPGA IP 34. Guard Bands Intel® FPGA IP 35. Histogram Statistics Intel® FPGA IP 36. Interlacer Intel® FPGA IP 37. Mixer Intel® FPGA IP 38. Pixels in Parallel Converter Intel® FPGA IP 39. Scaler Intel® FPGA IP 40. Stream Cleaner Intel® FPGA IP 41. Switch Intel® FPGA IP 42. Tone Mapping Operator Intel® FPGA IP 43. Test Pattern Generator Intel® FPGA IP 44. Unsharp Mask Intel® FPGA IP 45. Video and Vision Monitor Intel FPGA IP 46. Video Frame Buffer Intel® FPGA IP 47. Video Frame Reader Intel FPGA IP 48. Video Frame Writer Intel FPGA IP 49. Video Streaming FIFO Intel® FPGA IP 50. Video Timing Generator Intel® FPGA IP 51. Vignette Correction Intel® FPGA IP 52. Warp Intel® FPGA IP 53. White Balance Correction Intel® FPGA IP 54. White Balance Statistics Intel® FPGA IP 55. Design Security 56. Document Revision History for Video and Vision Processing Suite User Guide
1. About the Video and Vision Processing Suite x
1.1. Video and Vision Processing IPs Features 1.2. Device Family Support 1.3. Video and Vision Processing IPs Release Information 1.4. Lite versus Full IP Variants 1.5. Glossary of Video and Vision Terminology
2. Getting Started with the Video and Vision Processing IPs x
2.1. Video and Vision Processing IP Evaluation Time-out Behavior 2.2. Generating a Video and Vision Processing IP 2.3. Simulating the Video and Vision Processing IPs
3. Video and Vision Processing IPs Functional Description x
3.1. Auxiliary Control Packets 3.2. Latency 3.3. IP Debugging Features 3.4. Stall Behavior and Error Recovery 3.5. Avalon Streaming Video Protocol Versus Intel FPGA Streaming Video Protocol
5. Video and Vision Processing IP Registers x
5.1. Video and Vision Processing IP Control Examples
7. Protocol Converter Intel® FPGA IP x
7.1. About the Protocol Converter IP 7.2. Protocol Converter IP Parameters 7.3. Protocol Converter IP Functional Description 7.4. Protocol Converter IP Interfaces 7.5. Protocol Converter IP Registers 7.6. Protocol Converter IP Software API
7.1. About the Protocol Converter IP x
7.1.1. Protocol Converter IP Performance and Resources
8. 1D LUT Intel® FPGA IP x
8.1. About the 1D LUT IP 8.2. 1D LUT IP Parameters 8.3. 1D LUT IP Interfaces 8.4. 1D LUT IP Registers 8.5. 1D LUT IP Software API
8.1. About the 1D LUT IP x
8.1.1. 1D LUT IP Performance and Resources
9. 3D LUT Intel® FPGA IP x
9.1. About the 3D LUT Intel® FPGA IP 9.2. 3D LUT IP Parameters 9.3. 3D LUT IP Block Description 9.4. 3D LUT IP Registers 9.5. 3D LUT IP Software API
9.1. About the 3D LUT Intel® FPGA IP x
9.1.1. 3D LUT IP Features 9.1.2. 3D LUT IP Performance IP and Resource Information
9.3. 3D LUT IP Block Description x
9.3.1. 3D LUT IP Interfaces 9.3.2. 3D LUT IP Latency
10. Adaptive Noise Reduction Intel® FPGA IP x
10.1. About the Adaptive Noise Reduction IP 10.2. Adaptive Noise Reduction IP Parameters 10.3. Adaptive Noise Reduction IP Functional Description 10.4. Adaptive Noise Reduction IP Registers 10.5. Adaptive Noise Reduction IP Software API
10.1. About the Adaptive Noise Reduction IP x
10.1.1. Adaptive Noise Reduction IP Performance and Resources
10.3. Adaptive Noise Reduction IP Functional Description x
10.3.1. Adaptive Noise Reduction IP Interfaces
11. Advanced Test Pattern Generator Intel® FPGA IP x
11.1. About the Advanced Test Pattern Generator IP 11.2. Advanced Test Pattern Generator IP Parameters 11.3. Advanced Test Pattern Generator IP Functional Description 11.4. Advanced Test Pattern Generator IP Registers 11.5. Advanced Test Pattern Generator IP Software API
11.1. About the Advanced Test Pattern Generator IP x
11.1.1. Advanced Test Pattern Generator IP Performance and Resources
11.3. Advanced Test Pattern Generator IP Functional Description x
11.3.1. Test Patterns 11.3.2. Dimensions, Offsets, and Alpha Settings 11.3.3. Run-time Settings 11.3.4. Advanced Test Pattern Generator IP Interfaces
12. AXI-Stream Broadcaster Intel® FPGA IP x
12.1. About the AXI-Stream Broadcaster IP 12.2. AXI-Stream Broadcaster IP Parameters 12.3. AXI-Stream Broadcaster IP Interfaces
12.1. About the AXI-Stream Broadcaster IP x
12.1.1. AXI-Stream Broadcaster IP Features 12.1.2. AXI-Stream Broadcaster IP Performance and Resources
13. Bits per Color Sample Adapter Intel FPGA IP x
13.1. About the Bits per Color Sample Adapter IP 13.2. Bits per Color Sample Adapter IP Parameters 13.3. Bits per Color Sample Adapter IP Interfaces 13.4. Bits per Color Sample Adapter IP Registers 13.5. Bits per Color Sample Adapter Software API
13.1. About the Bits per Color Sample Adapter IP x
13.1.1. Bits per Color Sample Adapter IP Performance and Resources
14. Black Level Correction Intel® FPGA IP x
14.1. About the Black Level Correction IP 14.2. Black Level Correction IP Parameters 14.3. Black Level Correction IP Functional Description 14.4. Black Level Correction IP Registers 14.5. Black Level Correction IP Software API
14.1. About the Black Level Correction IP x
14.1.1. Black Level Correction IP Performance and Resources
14.3. Black Level Correction IP Functional Description x
14.3.1. Black Level Correction IP Interfaces
15. Black Level Statistics Intel® FPGA IP x
15.1. About the Black Level Statistics IP 15.2. Black Level Statistics IP Parameters 15.3. Black Level Statistics IP Interfaces 15.4. Black Level Statistics IP Registers 15.5. Black Level Statistics IP Software API
15.1. About the Black Level Statistics IP x
15.1.1. Black Level Statistics IP Performance and Resources
16. Chroma Key Intel® FPGA IP x
16.1. About the Chroma Key IP 16.2. Chroma Key IP Parameters 16.3. Chroma Key IP Interfaces 16.4. Chroma Key Replacement 16.5. Chroma Key IP Registers 16.6. Chroma Key IP Software API
16.1. About the Chroma Key IP x
16.1.1. Chroma Key IP Performance and Resources
17. Chroma Resampler Intel® FPGA IP x
17.1. About the Chroma Resampler IP 17.2. Chroma Resampler IP Parameters 17.3. Chroma Resampler IP Functional Description 17.4. Chroma Resampler IP Registers 17.5. Chroma Resampler IP Software API
17.1. About the Chroma Resampler IP x
17.1.1. Chroma Resampler Performance and Resources
17.3. Chroma Resampler IP Functional Description x
17.3.1. Chroma Resampler IP Interfaces
18. Clipper Intel® FPGA IP x
18.1. About the Clipper IP 18.2. Clipper IP Parameters 18.3. Clipper IP Interfaces 18.4. Clipper IP Registers 18.5. Clipper IP Software API
18.1. About the Clipper IP x
18.1.1. Clipper IP Performance and Resources
19. Clocked Video Input Intel® FPGA IP x
19.1. About the Clocked Video Input IP 19.2. Initializing the Clocked Video Input IP 19.3. Clocked Video Input IP Parameters 19.4. Clocked Video Input IP Interfaces 19.5. Clocked Video Input IP Registers 19.6. Clocked Video Input IP Software API
19.1. About the Clocked Video Input IP x
19.1.1. Clocked Video Input IP Features 19.1.2. Clocked Video Input IP Performance and Resources
20. Clocked Video to Full-Raster Converter Intel® FPGA IP x
20.1. About the Clocked Video to Full-Raster Converter IP 20.2. Clocked Video to Full-Raster Converter Parameters 20.3. Clocked Video to Full-Raster Converter Block Description 20.4. Clocked Video Converter to Full-Raster IP Registers
20.1. About the Clocked Video to Full-Raster Converter IP x
20.1.1. Clocked Video to Full-Raster Converter Features 20.1.2. Clocked Video to Full-Raster Converter Performance and Resources
20.3. Clocked Video to Full-Raster Converter Block Description x
20.3.1. Clocked Video to Full-Raster Converter Interfaces
21. Clocked Video Output Intel® FPGA IP x
21.1. About the Clocked Video Output IP 21.2. Clocked Video Output IP Parameters 21.3. Clocked Video Output IP Functional Description 21.4. Clocked Video Output IP Interfaces 21.5. Clocked Video Output IP Registers 21.6. Clocked Video Output IP Software API
21.1. About the Clocked Video Output IP x
21.1.1. Clocked Video Output IP Performance and Resources 21.1.2. Clocked Video Output IP Features
22. Color Plane Manager Intel® FPGA IP x
22.1. About the Color Plane Manager IP 22.2. Color Plane Manager IP Parameters 22.3. Color Plane Manager IP Functional Description 22.4. Color Plane Manager IP Registers 22.5. Color Plane Manager Software API
22.1. About the Color Plane Manager IP x
22.1.1. Color Plane Manager IP Performance and Resources
22.3. Color Plane Manager IP Functional Description x
22.3.1. Color Plane Manager IP Interfaces
23. Color Space Converter Intel® FPGA IP x
23.1. About the Color Space Converter IP 23.2. Color Space Converter IP Parameters 23.3. Color Space Converter IP Functional Description 23.4. Color Space Converter IP Registers 23.5. Color Space Converter IP Software API
23.1. About the Color Space Converter IP x
23.1.1. Color Space Converter IP Features 23.1.2. Color Space Converter IP Performance and Resources
23.3. Color Space Converter IP Functional Description x
23.3.1. Color Space Converter IP Interfaces
24. Defective Pixel Correction Intel® FPGA IP x
24.1. About the Defective Pixel Correction IP 24.2. Defective Pixel Correction IP Parameters 24.3. Defective Pixel Correction IP Functional Description 24.4. Defective Pixel Correction IP Registers 24.5. Defective Pixel Correction IP Software API
24.1. About the Defective Pixel Correction IP x
24.1.1. Defective Pixel Correction IP Performance and Resources
24.3. Defective Pixel Correction IP Functional Description x
24.3.1. Defective Pixel Correction IP Interfaces
25. Deinterlacer Intel® FPGA IP x
25.1. About the Deinterlacer IP 25.2. Deinterlacer Parameters 25.3. Deinterlacer IP Functional Description 25.4. Deinterlacer IP Registers 25.5. Deinterlacer IP Software API
25.1. About the Deinterlacer IP x
25.1.1. Deinterlacer Performance and Resources
25.3. Deinterlacer IP Functional Description x
25.3.1. Deinterlacer Interfaces
26. Demosaic Intel® FPGA IP x
26.1. About the Demosaic IP 26.2. Demosaic IP Parameters 26.3. Demosaic IP Functional Description 26.4. Demosaic IP Registers 26.5. Demosaic IP Software API
26.1. About the Demosaic IP x
26.1.1. Demosaic IP Performance and Resources
26.3. Demosaic IP Functional Description x
26.3.1. Demosaic IP Interfaces
27. FIR Filter Intel® FPGA IP x
27.1. About the FIR Filter 27.2. FIR Filter Parameters 27.3. FIR Filter IP Operation 27.4. FIR Filter Interfaces 27.5. FIR Filter Registers 27.6. FIR Filter IP Software API
27.1. About the FIR Filter x
27.1.1. FIR Filter IP Performance and Resources
27.3. FIR Filter IP Operation x
27.3.1. FIR Filter Processing 27.3.2. FIR Filter Precision 27.3.3. FIR Coefficient Specification 27.3.4. FIR Filter Symmetry 27.3.5. Result to Output Data Type Conversion
27.3.4. FIR Filter Symmetry x
27.3.4.1. No Symmetry 27.3.4.2. Horizontal Symmetry 27.3.4.3. Vertical Symmetry 27.3.4.4. Horizontal and Vertical Symmetry 27.3.4.5. Diagonal Symmetry
28. Frame Cleaner Intel® FPGA IP x
28.1. About the Frame Cleaner IP 28.2. Frame Cleaner IP Parameters 28.3. Frame Cleaner IP Functional Description 28.4. Frame Cleaner IP Interfaces 28.5. Frame Cleaner IP Registers 28.6. Frame Cleaner IP Software API
28.1. About the Frame Cleaner IP x
28.1.1. Frame Cleaner IP Performance and Resources
29. Full-Raster to Clocked Video Converter Intel® FPGA IP x
29.1. About the Full-Raster to Clocked Video Converter 29.2. Full Raster to Clocked Video Converter Parameters 29.3. Full-Raster to Clocked Video Converter Block Description 29.4. Full-Raster to Clocked Video Converter Registers
29.1. About the Full-Raster to Clocked Video Converter x
29.1.1. Full-Raster to Clocked Video Converter Features 29.1.2. Full-Raster to Clocked Video Converter Performance and Resource Utilization
29.3. Full-Raster to Clocked Video Converter Block Description x
29.3.1. Full Raster to Clocked Video Converter Interfaces
30. Full-Raster to Streaming Converter Intel® FPGA IP x
30.1. About the Full-Raster to Streaming Converter IP 30.2. Full-Raster to Streaming Converter Parameters 30.3. Full-Raster to Streaming Converter Block Description
30.1. About the Full-Raster to Streaming Converter IP x
30.1.1. Full-Raster to Streaming Converter Features 30.1.2. Full-Raster to Streaming Converter Performance and Resources
30.3. Full-Raster to Streaming Converter Block Description x
30.3.1. Full-Raster to Streaming Converter Interfaces
31. Genlock Controller Intel® FPGA IP x
31.1. About the Genlock Controller IP 31.2. Genlock Controller IP Parameters 31.3. Genlock Controller IP Functional Description 31.4. Using Genlock Controller IP Software 31.5. Genlock Controller IP Registers 31.6. Genlock Controller IP Software API
31.1. About the Genlock Controller IP x
31.1.1. Genlock Controller IP Performance and Resources
31.3. Genlock Controller IP Functional Description x
31.3.1. Genlock Controller IP Interfaces
31.4. Using Genlock Controller IP Software x
31.4.1. Achieving Genlock Controller Free Running (for Initialization or from Lock to Reference Clock N) 31.4.2. Locking to Reference Clock N (from Genlock Controller IP free running) 31.4.3. Setting the VCXO hold over 31.4.4. Restarting the Genlock Controller IP 31.4.5. Locking to Reference Clock N New (from Locking to Reference Clock N Old) 31.4.6. Changing to Reference Clock or VCXO Base Frequencies (switch between p50 and p59.94 video formats and vice-versa) 31.4.7. Disturbing a Reference Clock (a cable pull)
32. Generic Crosspoint Intel® FPGA IP x
32.1. About the Generic Crosspoint IP 32.2. Generic Crosspoint IP Parameters 32.3. Generic Crosspoint IP Interfaces 32.4. Generic Crosspoint IP Registers 32.5. Generic Crosspoint IP Software API
32.1. About the Generic Crosspoint IP x
32.1.1. Generic Crosspoint IP Features 32.1.2. Generic Crosspoint Performance and Resources
33. Genlock Signal Router Intel® FPGA IP x
33.1. About the Genlock Signal Router IP 33.2. Genlock Signal Router IP Parameters 33.3. Genlock Signal Router IP Interfaces 33.4. Genlock Signal Router IP Registers 33.5. Genlock Signal Router IP Software API
33.1. About the Genlock Signal Router IP x
33.1.1. Genlock Signal Router IP Features 33.1.2. Genlock Signal Router IP Performance and Resources
34. Guard Bands Intel® FPGA IP x
34.1. About the Guard Bands IP 34.2. Guard Bands IP Parameters 34.3. Guard Bands IP Interfaces 34.4. Guard Bands IP Registers 34.5. Guard Bands IP Software API
34.1. About the Guard Bands IP x
34.1.1. Guard Bands IP Performance and Resources
35. Histogram Statistics Intel® FPGA IP x
35.1. About the Histogram Statistics IP 35.2. Histogram Statistics IP Parameters 35.3. Histogram Statistics IP Interfaces 35.4. Histogram Statistics IP Registers 35.5. Histogram Statistics IP Software API
35.1. About the Histogram Statistics IP x
35.1.1. Histogram Statistics IP Performance and Resources
36. Interlacer Intel® FPGA IP x
36.1. About the Interlacer IP 36.2. Interlacer IP Parameters 36.3. Interlacer IP Functional Description 36.4. Interlacer IP Registers 36.5. Interlacer IP Software API
36.1. About the Interlacer IP x
36.1.1. Interlacer IP Performance and Resources
36.3. Interlacer IP Functional Description x
36.3.1. Interlacer IP Interfaces
37. Mixer Intel® FPGA IP x
37.1. About the Mixer IP 37.2. Mixer IP Parameters 37.3. Mixer IP Functional Description 37.4. Mixer IP Registers 37.5. Mixer IP Software API
37.1. About the Mixer IP x
37.1.1. Mixer IP Performance and Resources
37.3. Mixer IP Functional Description x
37.3.1. Mixer IP Interfaces
38. Pixels in Parallel Converter Intel® FPGA IP x
38.1. About the Pixels in Parallel Converter IP 38.2. Pixels in Parallel Converter IP Parameters 38.3. Pixels in Parallel Converter Interfaces 38.4. Pixels in Parallel Converter Registers 38.5. Pixels in Parallel Converter IP Software API
38.1. About the Pixels in Parallel Converter IP x
38.1.1. Pixels in Parallel Converter IP Performance and Resources
39. Scaler Intel® FPGA IP x
39.1. About the Scaler 39.2. Scaler IP Parameters 39.3. Scaler IP Functional Description 39.4. Scaler IP Registers 39.5. Scaler IP Software API
39.1. About the Scaler x
39.1.1. Scaler IP Performance and Resources
39.2. Scaler IP Parameters x
39.2.1. Scaler Maximum Resolution
39.3. Scaler IP Functional Description x
39.3.1. Coefficient Selection 39.3.2. Coefficient Quantization 39.3.3. Filter Behavior at Edge Boundaries 39.3.4. Partial Frame Scaling 39.3.5. 422 and 420 Chroma Sampled Data Scaling 39.3.6. Scaler IP Interfaces
39.3.1. Coefficient Selection x
39.3.1.1. Updating Scaler IP Runtime Coefficients
40. Stream Cleaner Intel® FPGA IP x
40.1. About the Stream Cleaner IP 40.2. Stream Cleaner IP Parameters 40.3. Stream Cleaner IP Functional Description
40.1. About the Stream Cleaner IP x
40.1.1. Stream Cleaner IP Performance and Resources
40.3. Stream Cleaner IP Functional Description x
40.3.1. Stream Cleaner IP Interfaces
41. Switch Intel® FPGA IP x
41.1. About the Switch IP 41.2. Switch IP Parameters 41.3. Switch IP Functional Description 41.4. Switch IP Registers 41.5. Switch IP Software API
41.1. About the Switch IP x
41.1.1. Switch IP Performance and Resources
41.3. Switch IP Functional Description x
41.3.1. Switch IP Latency 41.3.2. Switch IP Interfaces
42. Tone Mapping Operator Intel® FPGA IP x
42.1. About the Tone Mapping Operator IP 42.2. TMO IP Parameters 42.3. TMO IP Block Description 42.4. TMO IP Registers 42.5. TMO IP Software API
42.1. About the Tone Mapping Operator IP x
42.1.1. TMO IP Features 42.1.2. TMO IP Performance and Resource Utilization
42.3. TMO IP Block Description x
42.3.1. TMO IP Interfaces 42.3.2. TMO IP Latency
43. Test Pattern Generator Intel® FPGA IP x
43.1. About the Test Pattern Generator IP 43.2. Test Pattern Generator IP Parameters 43.3. Test Pattern Generator IP Functional Description 43.4. Test Pattern Generator IP Registers 43.5. Test Pattern Generator IP Software API
43.1. About the Test Pattern Generator IP x
43.1.1. Test Pattern Generator IP Performance and Resources
43.3. Test Pattern Generator IP Functional Description x
43.3.1. Test Patterns 43.3.2. Output Subsampling and Color Space 43.3.3. Run-time Settings 43.3.4. Test Pattern Generator IP Interfaces
44. Unsharp Mask Intel® FPGA IP x
44.1. About the Unsharp Mask IP 44.2. Unsharp Mask IP Parameters 44.3. Unsharp Mask IP Functional Description 44.4. Unsharp Mask IP Registers 44.5. Unsharp Mask IP Software API
44.1. About the Unsharp Mask IP x
44.1.1. Unsharp Mask IP Performance and Resources
44.3. Unsharp Mask IP Functional Description x
44.3.1. Unsharp Mask IP Interfaces
45. Video and Vision Monitor Intel FPGA IP x
45.1. About the Video and Vision Monitor IP 45.2. Video and Vision Monitor IP Parameters 45.3. Video and Vision Monitor IP Functional Description 45.4. Video and Vision Monitor IP Registers 45.5. Video and Vision Monitor Software API
45.1. About the Video and Vision Monitor IP x
45.1.1. Video and Vision Monitor IP Performance and Resources
45.3. Video and Vision Monitor IP Functional Description x
45.3.1. Video and Vision Monitor IP Interfaces
46. Video Frame Buffer Intel® FPGA IP x
46.1. About the Video Frame Buffer IP 46.2. Video Frame Buffer IP Parameters 46.3. Video Frame Buffer IP Functional Description 46.4. Video Frame Buffer IP Registers 46.5. Video Frame Buffer IP Software API
46.1. About the Video Frame Buffer IP x
46.1.1. Video Frame Buffer Performance and Resources
46.3. Video Frame Buffer IP Functional Description x
46.3.1. Video Frame Buffer IP Interfaces
47. Video Frame Reader Intel FPGA IP x
47.1. About the Video Frame Reader IP 47.2. Video Frame Reader IP Parameters 47.3. Video Frame Reader IP Functional Description 47.4. Video Frame Reader IP Registers 47.5. Video Frame Reader IP Software API
47.1. About the Video Frame Reader IP x
47.1.1. Video Frame Reader IP Performance and Resources
47.3. Video Frame Reader IP Functional Description x
47.3.1. Video Frame Reader IP Interfaces
48. Video Frame Writer Intel FPGA IP x
48.1. About the Video Buffer Writer IP 48.2. Video Frame Writer IP Parameters 48.3. Video Frame Writer IP Functional Description 48.4. Video Frame Writer IP Registers 48.5. Video Frame Writer IP Software API
48.1. About the Video Buffer Writer IP x
48.1.1. Video Frame Writer IP Performance and Resources
48.3. Video Frame Writer IP Functional Description x
48.3.1. Video Frame Writer IP Interfaces
49. Video Streaming FIFO Intel® FPGA IP x
49.1. About the Video Streaming FIFO IP 49.2. Video Streaming FIFO IP Parameters 49.3. Video Streaming FIFO IP Interfaces
49.1. About the Video Streaming FIFO IP x
49.1.1. Video Streaming FIFO IP Performance and Resources
50. Video Timing Generator Intel® FPGA IP x
50.1. About the Video Timing Generator IP 50.2. Video Timing Generator IP Parameters 50.3. Video Timing Generator IP Functional Description 50.4. Video Timing Generator IP Interfaces 50.5. Video Timing Generator IP Registers 50.6. Video Timing Generator IP Software API
50.1. About the Video Timing Generator IP x
50.1.1. Video Timing Generator IP Features 50.1.2. Video Timing Generator IP Performance and Resources
51. Vignette Correction Intel® FPGA IP x
51.1. About the Vignette Correction IP 51.2. Vignette Correction IP Parameters 51.3. Vignette Correction IP Interfaces 51.4. Vignette Correction IP Registers 51.5. Vignette Correction IP Software API
51.1. About the Vignette Correction IP x
51.1.1. Vignette Correction IP Performance and Resources
52. Warp Intel® FPGA IP x
52.1. About the Warp IP 52.2. Warp IP Parameters 52.3. Warp IP Block Description 52.4. Warp IP Registers 52.5. Warp IP Software API
52.1. About the Warp IP x
52.1.1. Warp IP Features 52.1.2. Warp IP Performance and Resource Utilization
52.3. Warp IP Block Description x
52.3.1. Block Cache Tool 52.3.2. Warp IP Interfaces 52.3.3. Warp IP Latency 52.3.4. External Memory for Warp IP
52.5. Warp IP Software API x
52.5.1. Using Warp IP Software 52.5.2. Warp IP Software Code Examples
53. White Balance Correction Intel® FPGA IP x
53.1. About the White Balance Correction IP 53.2. White Balance Correction IP Parameters 53.3. White Balance Correction IP Functional Description 53.4. White Balance Correction IP Registers 53.5. White Balance Correction IP Software API
53.1. About the White Balance Correction IP x
53.1.1. White Balance Correction IP Performance and Resources
53.3. White Balance Correction IP Functional Description x
53.3.1. White Balance Correction IP Interfaces
54. White Balance Statistics Intel® FPGA IP x
54.1. About the White Balance Statistics IP 54.2. White Balance Statistics IP Parameters 54.3. White Balance Statistics IP Interfaces 54.4. White Balance Statistics IP Registers 54.5. White Balance Statistics IP Software API
54.1. About the White Balance Statistics IP x
54.1.1. White Balance Statistics IP Performance and Resources
55. Design Security x
55.1. Memory Subsystems 55.2. Considering Design Security
1. About the Video and Vision Processing Suite
2. Getting Started with the Video and Vision Processing IPs
3. Video and Vision Processing IPs Functional Description
4. Video and Vision Processing IP Interfaces
5. Video and Vision Processing IP Registers
6. Video and Vision Processing IPs Software Programming Model
7. Protocol Converter Intel® FPGA IP
8. 1D LUT Intel® FPGA IP
9. 3D LUT Intel® FPGA IP
10. Adaptive Noise Reduction Intel® FPGA IP
11. Advanced Test Pattern Generator Intel® FPGA IP
12. AXI-Stream Broadcaster Intel® FPGA IP
13. Bits per Color Sample Adapter Intel FPGA IP
14. Black Level Correction Intel® FPGA IP
15. Black Level Statistics Intel® FPGA IP
16. Chroma Key Intel® FPGA IP
17. Chroma Resampler Intel® FPGA IP
18. Clipper Intel® FPGA IP
19. Clocked Video Input Intel® FPGA IP
20. Clocked Video to Full-Raster Converter Intel® FPGA IP
21. Clocked Video Output Intel® FPGA IP
22. Color Plane Manager Intel® FPGA IP
23. Color Space Converter Intel® FPGA IP
24. Defective Pixel Correction Intel® FPGA IP
25. Deinterlacer Intel® FPGA IP
26. Demosaic Intel® FPGA IP
27. FIR Filter Intel® FPGA IP
28. Frame Cleaner Intel® FPGA IP
29. Full-Raster to Clocked Video Converter Intel® FPGA IP
30. Full-Raster to Streaming Converter Intel® FPGA IP
31. Genlock Controller Intel® FPGA IP
32. Generic Crosspoint Intel® FPGA IP
33. Genlock Signal Router Intel® FPGA IP
34. Guard Bands Intel® FPGA IP
35. Histogram Statistics Intel® FPGA IP
36. Interlacer Intel® FPGA IP
37. Mixer Intel® FPGA IP
38. Pixels in Parallel Converter Intel® FPGA IP
39. Scaler Intel® FPGA IP
40. Stream Cleaner Intel® FPGA IP
41. Switch Intel® FPGA IP
42. Tone Mapping Operator Intel® FPGA IP
43. Test Pattern Generator Intel® FPGA IP
44. Unsharp Mask Intel® FPGA IP
45. Video and Vision Monitor Intel FPGA IP
46. Video Frame Buffer Intel® FPGA IP
47. Video Frame Reader Intel FPGA IP
48. Video Frame Writer Intel FPGA IP
49. Video Streaming FIFO Intel® FPGA IP
50. Video Timing Generator Intel® FPGA IP
51. Vignette Correction Intel® FPGA IP
52. Warp Intel® FPGA IP
53. White Balance Correction Intel® FPGA IP
54. White Balance Statistics Intel® FPGA IP
55. Design Security
56. Document Revision History for Video and Vision Processing Suite User Guide

21.2. Clocked Video Output IP Parameters

The IP offers compile-time parameters.
Table 312.  CVO Configuration ParametersThese parameters configure the behavior of the IP at build time. You can only change them by recompiling the IP.
Parameter Allowed Range Description
Video Settings
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel
Number of color planes 1 to 4 Select the number of color planes per pixel
Bits per color sample 8 to 16 Select the number of bits per color sample
Default black for merge, color plane 0 0 to 65535 The initial value of black for this color plane
Default black for merge, color plane 1 0 to 65535 The initial value of black for this color plane
Default black for merge, color plane 2 0 to 65535 The initial value of black for this color plane
Default black for merge, color plane 3 0 to 65535 The initial value of black for this color plane
AXI4-S FR interface TREADY True or False

Select True to include the tReady signal in the full-raster interface

Select False to remove the tReady signal

Source Settings
Internal Timing Generator True or False

If True, the IP includes the Video Timing Generator Intel IP

If False, the IP provides a full-raster stream input bus for an external video timing source.

Async Video Input True or False

If True, the IP sees the video input as asynchronous to the full-raster stream output.

If False, the video input and full-raster stream output must use the same clock.

Depth of Video Input Fifos 0, 512, 1024, 2048, 4096 The approximate size of the FIFO buffer to use for the video input path. If set to 0, the IP registers the path internally to improve timing performance.
Test Pattern Input True or False

If True, an additional lite or full stream input bus is generated. If the primary input bus fails for any reason, this additional input is used.

If False, the IP generates no additional lite or full stream input buses. If the primary input bus fails for any reason, the output goes to black.

Async Test Pattern Input True or False

If True, the TPG input is asynchronous to the full raster stream output.

If False, the test pattern generator input and full-raster stream output must use the same clock.

Depth of TPG Input Fifos 0, 512, 1024, 2048, 4096 The approximate size of the FIFO buffer to use for the test pattern generator input path. If set to 0, the IP registers the path internally to improve timing performance.
Control Settings
Memory-Mapped Control Interface True or False

Select True to turn on the processor interface and associated signals.

When False, the IP removes the processor interface. All processor registers use default values

Frequency of CPU Clock 58 1 to 1000000000 The frequency, in Hz, of the processor clock.
Debug Settings
Timing Dimensions True or False

Select True to turn on the timing dimension processor registers. Additional logic is generated to measure the active and total widths and heights of the timing input, the full raster clock frequency, and the full raster frame period.

Select False, and the IP generates no additional logic. The associated processor registers return 0x1234abcd.

Video Dimensions True or False

Select True to turn on the video dimension processor registers. The IP generates additional logic to measure the active width and height of the video input, the video clock frequency, and the video input frame period.

Select False, and the IP generates no additional logic. The associated processor registers return 0x1234abcd.

Video Merge Status True or False

Select True to turn on diagnostic counters that report the status of the video merge process.

Select False, and the IP generates no additional logic. The associated processor registers return 0x1234abcd.

Test Pattern Dimensions True or False

Select True to turn on the test pattern generator dimension processor registers. The IP generates additional logic to measure the active width and height of the test pattern generator input, the test pattern generator clock frequency, and the test pattern generator input frame period

Select False, and the IP generates no additional logic. The associated processor registers return 0x1234abcd.

Test Pattern Merge Status True or False

Select True to turn on diagnostic counters that report the status of the test pattern generator merge process.

Select False, and the IP generates no additional logic. The associated processor registers return 0x1234abcd.

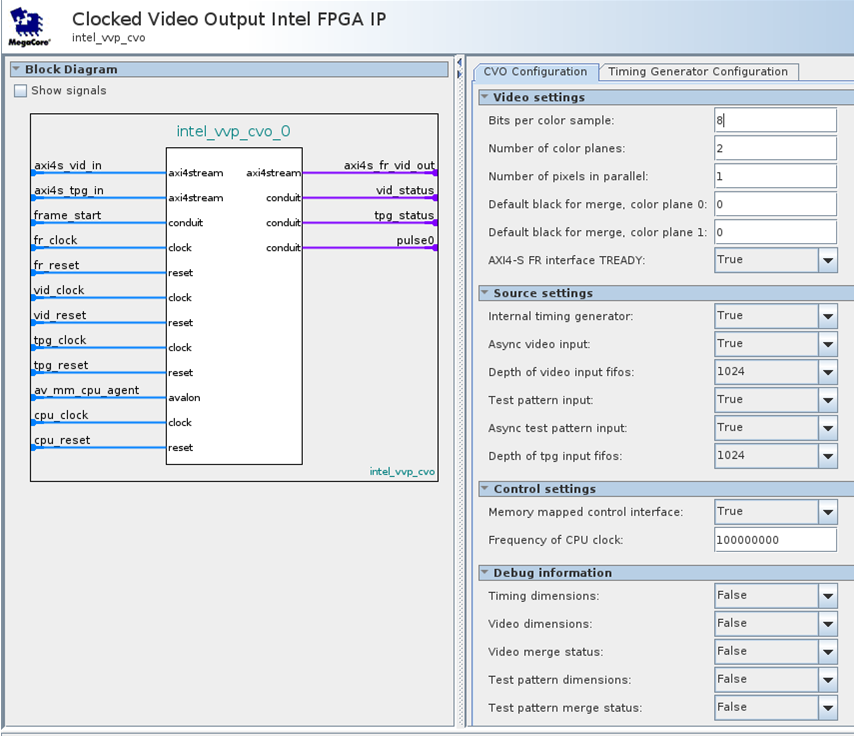

Figure 47. Clocked video Output IP Configuration Parameters GUI
Table 313.  Internal Timing Generator Build Parameters

The Timing Generator Configuration GUI has four tabs. The Build Parameters tab contains all the build-time options appropriate to the Timing Generator when built as part of the IP. You cannot change these parameters once you build the IP. Any change requires a full rebuild of the IP.

The Default Mode Configuration, Default Timing Configuration, and Default Pulse Configuration parameters are part of the Video Timing Generator IP. Refer to the Video Timing Generator IP Parameters.

The parameters on the default tabs apply to the IP when the IP is reset and you can change them during run time of the IP via the processor interface, without recompiling the IP.

Parameters Allowed Range Description
Timing Word Alignment

Any or PIP-Aligned Only

Select Any for no restrictions on raster dimensions versus the number of pixels in parallel.

When PIP-Aligned Only, all timing parameters must be integer multiples of the pixels In parallel value.

Hard frame lock support True or False

Select True to turn on the hard frame lock support.

When False, the IP removes all frame lock support.

Soft frame lock support True or False

Select True to enable soft frame lock support.

59

When False, the IP removes soft frame lock support.

Variable refresh rate support True or False

Select True to turn on variable refresh rate support

When False, the IP removes support for variable refresh rate

Horizontal counter bits 4-16

The number of binary bits required to represent the maximum width of raster.

For example, for a 4096 wide raster, set to 13.
Vertical counter bits 4-16

The number of binary bits required to represent the maximum height of raster.

For example, for a 2048 high raster, set to 12.
Number of pulses 0-8

The number of additional general-purpose pulses that the IP can produce.

Each additional pulse increases the gate count of this IP.

If set to 0, the Default Pulse Configuration GUI turns off.

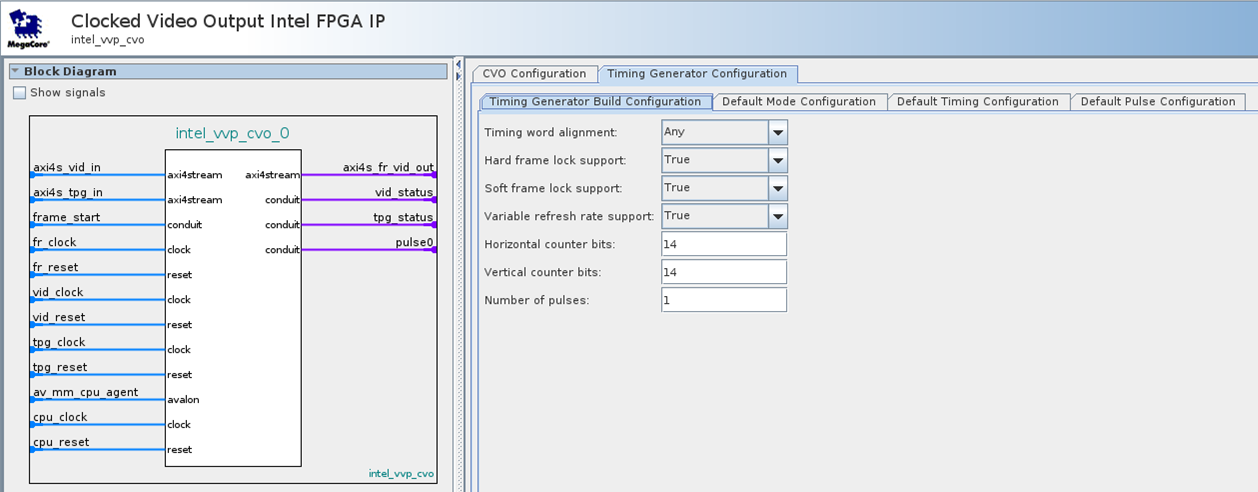

Figure 48. Clocked Video Output IP Timing Parameters GUI
58 This parameter is only available when Memory-Mapped Control Interface is True
59

Hard Frame Lock must also be True for correct operation of soft frame lock
