6.2.5. Enabling the P-Tile Link Inspector

To enable the Link Inspector, enable the option Enable Debug Toolkit in the PCIe Configuration, Debug and Extension Options tab. The PCIe Link Inspector is enabled by default if Enable Debug Toolkit is enabled.

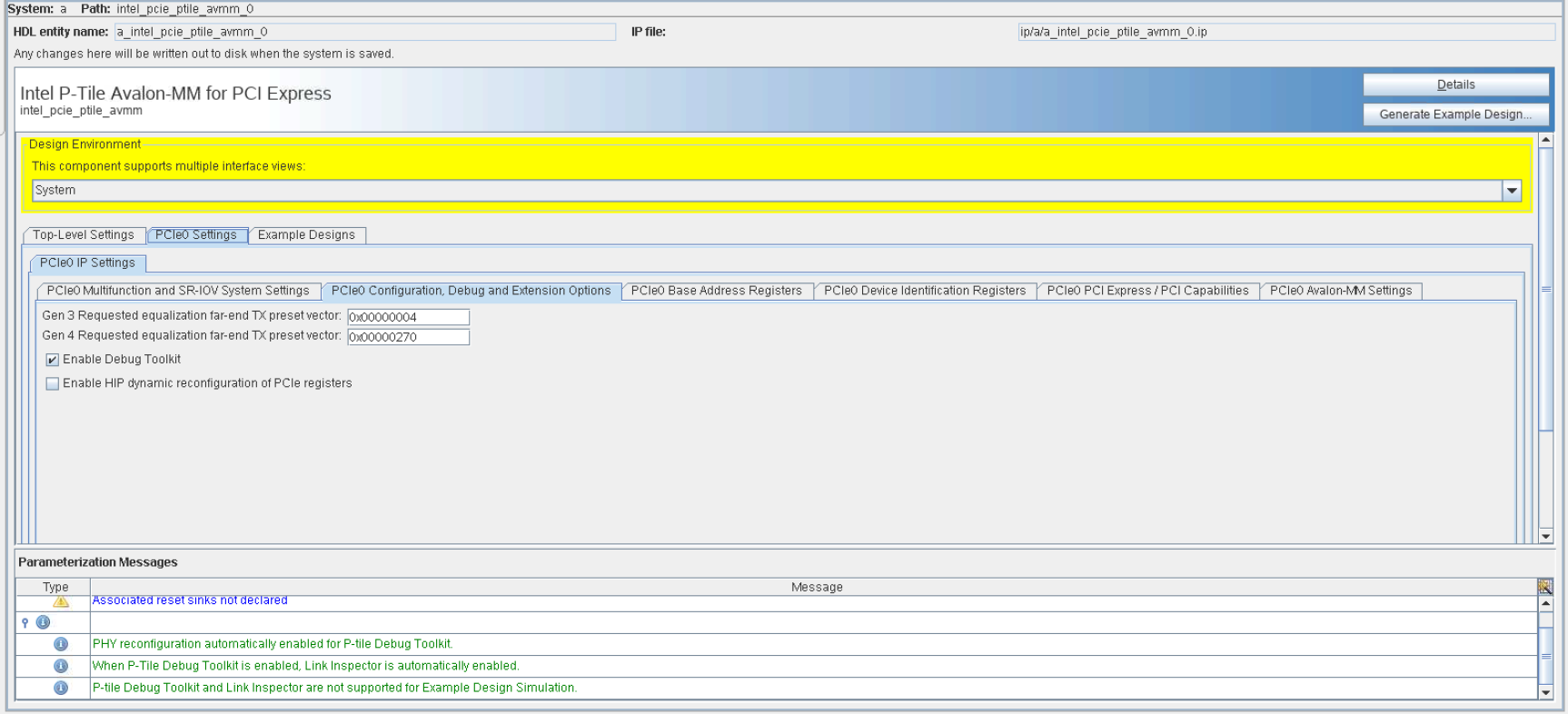

Figure 48. Enabling the Link Inspector
