3.2. Core Parameters

Depending on which Hard IP Mode you choose in the Top-Level Settings tab, you will see different tabs for setting the core parameters.

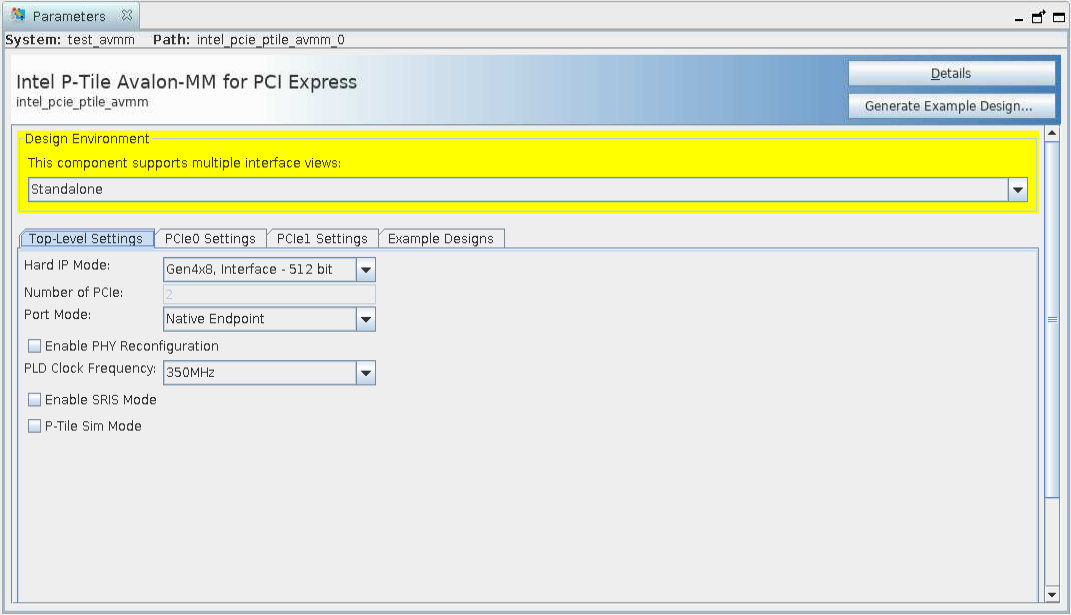

Figure 14. Intel P-Tile Avalon® -MM Top-Level IP Parameter Editor for a x8 Hard IP Mode If you choose a x8 mode (either Gen4 or Gen3), the PCIe0 Settings and PCIe1 Settings tabs will appear.


Section Content
Base Address Registers
PCI Express and PCI Capabilities Parameters
Device Identification Registers
Configuration, Debug and Extension Options
