4.3.3.4. HDL Code from Parameterizable Macros Template

Alternatively, you can utilize the Verilog HDL or VHDL code from the Parameterizable Macros template.
  1. Right-click the HDL file and select Insert Template.
  2. In the Insert Template dialog box, select Verilog HDL or VHDL and select Intel Parameterizable Macros.
  3. Select from the available templates and click Insert.

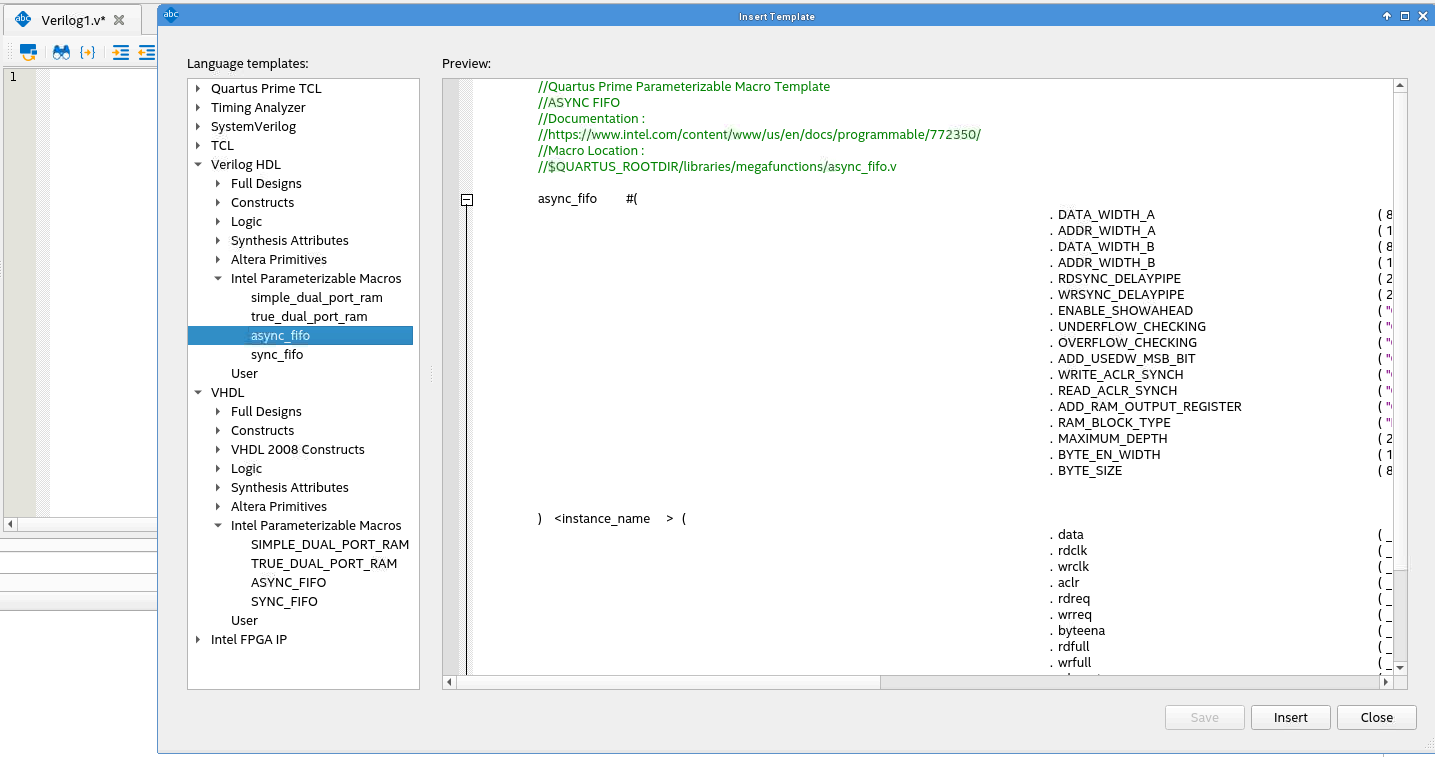

Figure 33. Inserting a Parameterizable Macros Template
