Dimensions of the Intel® PAC with Intel® Arria® 10 GX FPGA

  • Standard height, half length PCIe* card
  • Low profile option available
  • Card Weight with air duct: 255 g
  • Maximum component height: 14.47 mm
  • PCIe* x16 mechanical

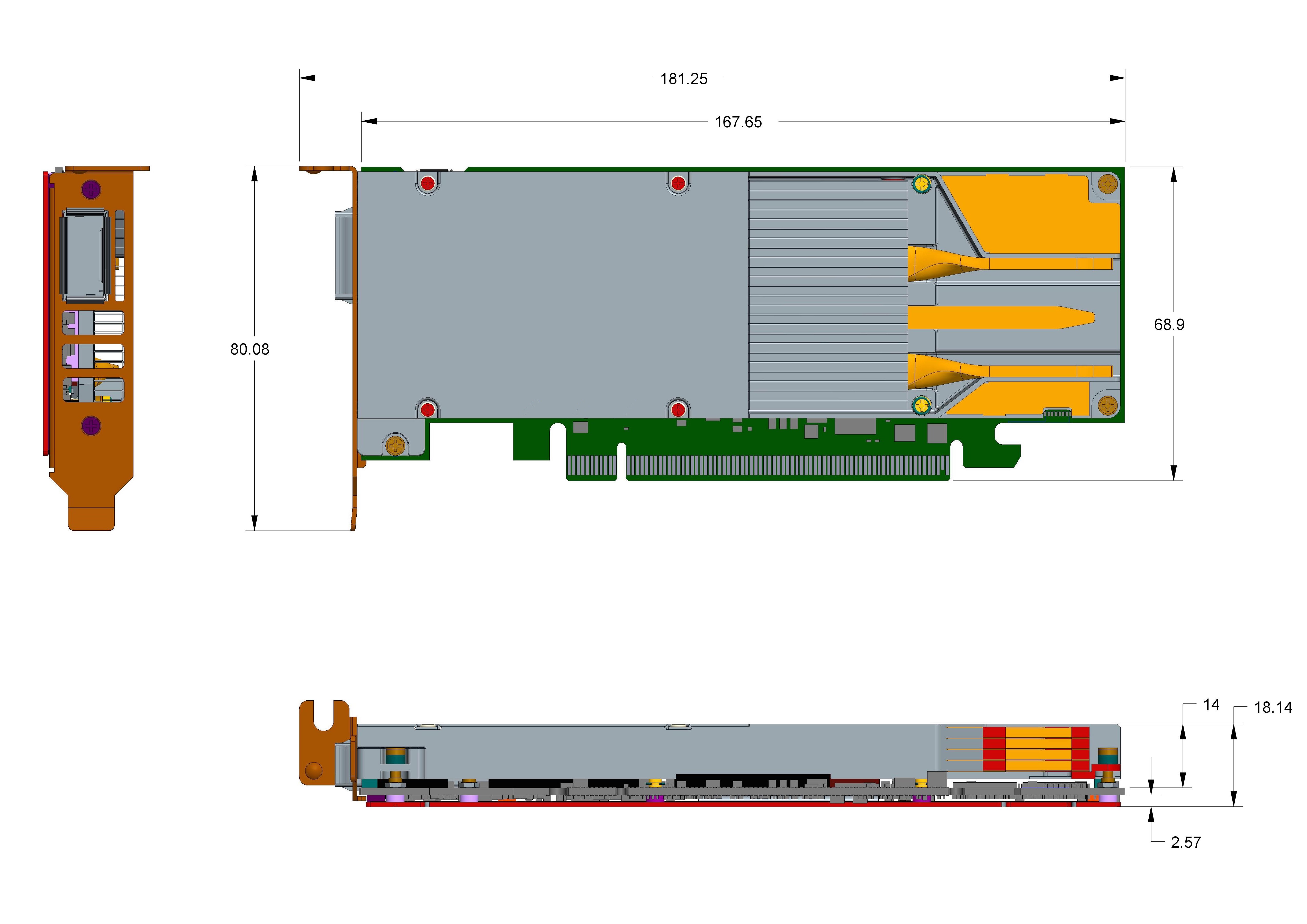

Figure 4. Acceleration Card - Standard Profile Bracket with Airduct
Figure 5. Air Duct Assembly
Figure 6. Acceleration Card - Low Profile Bracket
Figure 7. Acceleration Card - Standard Profile Bracket with No Air Duct
