3.5.3. Dynamic Power

The recommendations in this section can reduce dynamic power.

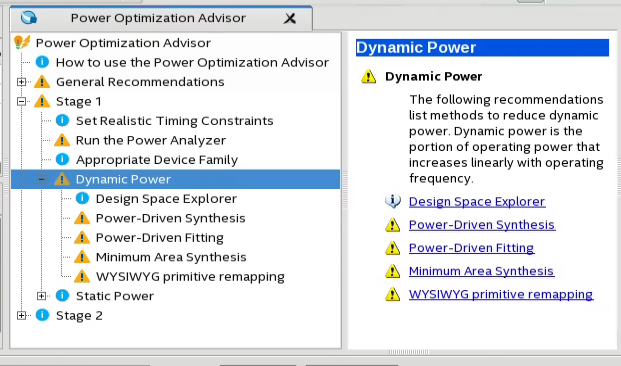

Figure 43. Dynamic Power Recommendations in the Power Optimization Advisor
