2.2. Generating and Configuring the EMIF IP
The following steps illustrate how to generate and configure the EMIF IP. This walkthrough creates a DDR4 interface, but the steps are similar for other protocols. (These steps follow the IP Catalog (standalone) flow; if you choose to use the Platform Designer (system) flow instead, the steps are similar.)

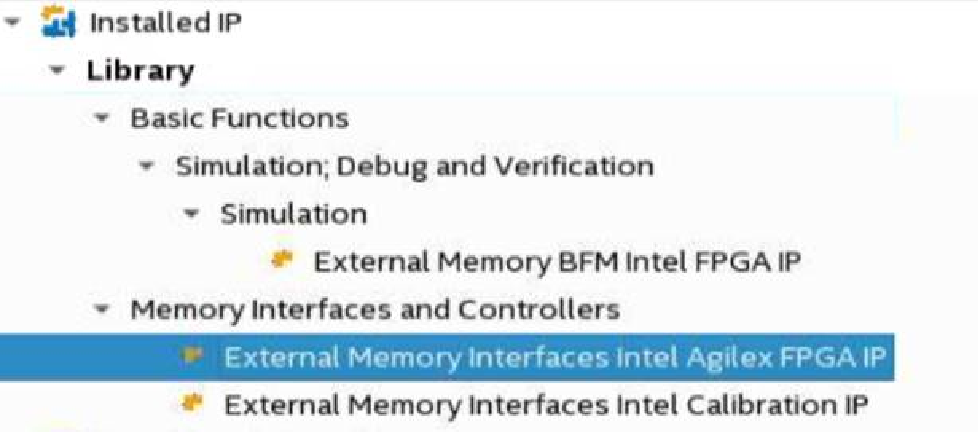

- In the IP Catalog window, select External Memory Interfaces Intel® Agilex™ FPGA IP. (If the IP Catalog window is not visible, select View > IP Catalog.)

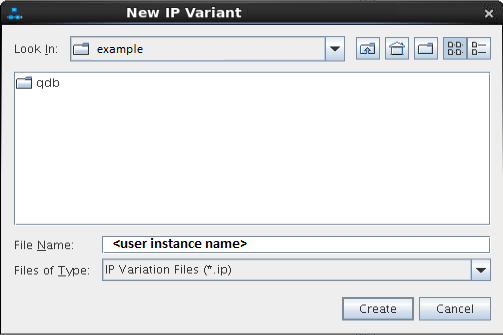

- In the IP Parameter Editor, provide an entity name for the EMIF IP (the name that you provide here becomes the file name for the IP) and specify a directory. Click Create.
- The parameter editor has multiple tabs where you must configure parameters to reflect your EMIF implementation.
